Responsibility is quality assurance,quality is the life of the brand.
|Place of Origin:||Chongqing,China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case suitable for sea transportation and air transportation|
|Delivery Time:||10 days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||500 sets/year|
|Flow Rate:||4800L/hour||Filtering Precision:||≤1 Micron|
|Water Content:||≤5ppm||Gas Content:||≤0.1%|
|Temperature Range:||20-80℃||Heated Surface:||≤1.0W/cm2|
|Working Pressure:||≤0.4 Mpa||Operation Mode:||Automatilc & Manual|
|Color:||Optional||Power Supply:||By Customized|
|Power:||52kw||Transportation:||By Sea Or Land|
transformer oil filtration equipment,
transformer oil processing equipment

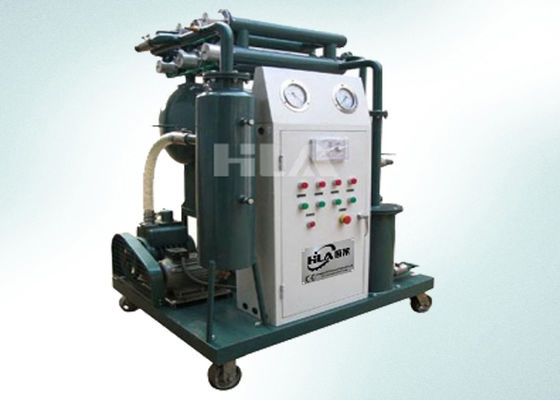

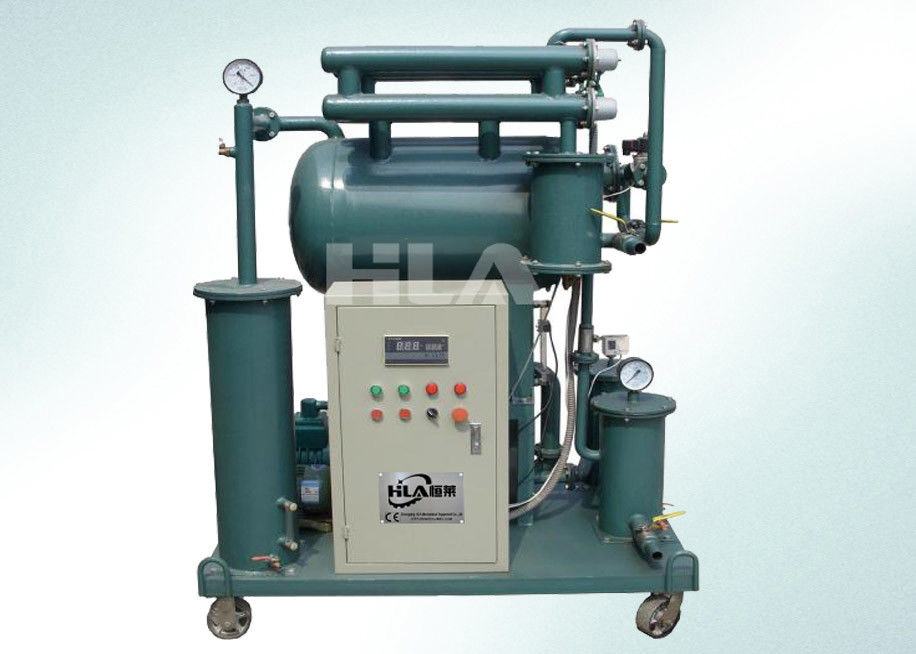

Moveable Transformer Oil Filtration Machine With Multistage High Precision Filtering
SVP series efficiency single stage vacuum transformers insulation oil purifier can quickly and effectively remove water, gas, oxide materials, fee carbon and other impurities from transformer oil to lower the PH value, improve breakdown voltage and quality. Also serving as the vacuum oiling equipment and drying equipment, SVP vacuum transformer oil purifier adopts high vacuum oil dehydrator and degasification system and duplex-Stereofilm evaporating technology for drying insulation oil and recover the dielectric strength. This vacuum insulation oil purification machine can live line work on the spot and also can be suitable to purify other insulating oils, such as capacitor oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil and so on.
Description of SVP80:
SVP80 model transformer oil purifier machine can treat 80L/minute(4800L/hour) transformer oil,this machine can be produced with Europe famous brand Germany Leybold vacuum pump and root pump,Schneider electric parts,Siemens S7 PLC ,On-line Moisture detector,Flow meter etc.
SVP80 Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor, monitoring and controlling oil’s actual heating condition and temperature.
SVP can works as vacuum oil filling machine, vacuum drying system and vacuum pumping system.
Small volume, light weight, easily movable, low maintenance cost and time
► Horizontal vacuum separation technology, high efficient separation of vacuum degassing, exponentially increase evaporation area, increase the retention time of the oil keep in the vacuum chamber, high efficient and reliable.
► Vacuum pump front cooler, reduce the water into the vacuum pump,and reduce the frequency of replace the vacuum pump oil, extend the life of the vacuum pump.
► Patent holder degassing tank "foam protection structure + two-way foam electronic monitoring system", to prevent vacuum pump oil injection.
► Automatic oil floating ball and automatic oil level electronic control system, realize the man-machine separation
► Using high pressure oil pump, put oil in/out through machine stability, low noise, long work life.
► Stainless steel mesh filters, acid resistant and anti-corrosion, large filtration area, strong suction sewage capacity, high working efficiency.
► Radiant heating system, enhance the contact area of the oil and oil heater, reduce the surface temperature of the heater, put an end to oil cracking aging.
► Fault protection, Heater protection, prevent heater dry, pressure protection, discharge fault alarm and motor alarm.
► This machine is small, hi-efficient conveniently. And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.
► Distinctive removing the impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.
► Bi-infrared liquid Duplex 3D stereo-evaporation technology, dewatering and degassing very effectively.
► The oil of any grades can be treated on line at the working site.
|Vacuum level||-0.06～-0.095 Mpa|
|Working pressure||≤ 0.4 Mpa|
|Temperature range||20 ～ 80℃|
|Filtering precision||≤1 micron|
|Continuous work||≥200 hr|
|No failure running||≥5000 hr|
|Power supply||380V, 50HZ, 3PH ( or Customized )|
|Working noise||65 dB|
|Heating power (kw)||48|
|Total power (kw)||52|
Index Of Purified Oil:
|Breakdown voltage||≥ 65KV|
|Water content||≤ 5ppm|
|Gas content||≤ 0.1%|
|Filtering particles||≥ 99.5%|
|Particles size||≤ 1 micron|
|Cleanness||≤ Grade 6 (NAS)|
|Processing index by regeneration device as following (customer's preference)|
|Acid value||≤ 0.03 mgKOH/g|
|Water-solubility||≥ 5.4 PH|
|Flash point (close cup)||≥ 135°C|
|Dielectric- factor loss||tgδ (90℃)% ≤ 0.005|
Since the foundation of our company, we have been devoting our efforts to developing better purifiers for energy saving. With the intellectual support form our first-rate oil purification experts and encouraged by the company's modern management mechanism, we have developed twelve series of products, including hundreds of oil purifier models,such as transformer oil purifier,lube oil purifier,turbine oil purifier,cooking oil purifier,diesel oil purifier,engine oil recycling,motor oil purification,fuel oil purifier,centrifugal oil purifier,heavy oil water separator,hydraulic oil purifier etc.
Our equipment can be applied to many fields, such as electric power, petroleum chemical, metallurgical industry, mining, aviation, shipping railway and so on.
We adhere to the tenet of mutual-benefit and win-win business. With the sincere and pragmatic work attitude, we would like to open up a new oil purification are with our customers.
