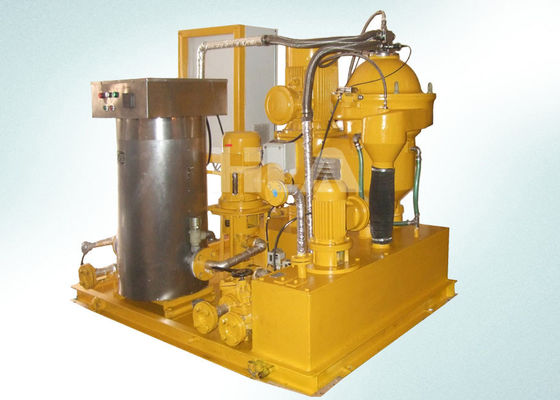

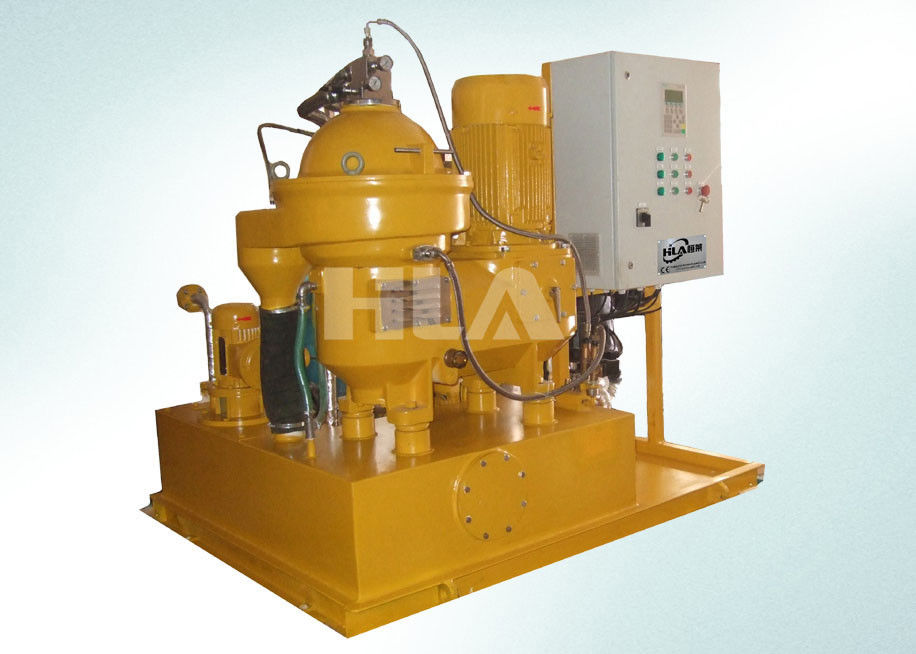

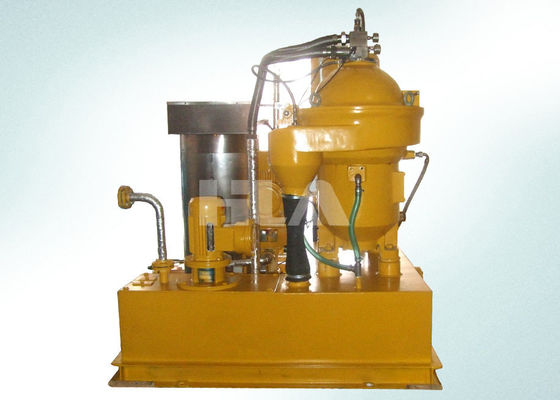

Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate

Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate

  • Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate
  • Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate
  • Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate
Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: ISO9001,CE,ISO14001,BV
Model Number: HCF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Condition: Brand New Flow Rate: 1500L~4000L/hour
Water Content: ≤50ppm Filtering Precision: ≤2 Micron
Maximum Viscosity: ≤320cSt Outlet Pressure: ≤0.2MPa
Certificate: ISO9001,CE,ISO14001 Sludge-discharge: Manual Or Automatic
Power Supply: By Customized Color: Optional
High Light:

centrifugal oil filter machine

,

centrifugal separator machine

Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate



Application:

The HCF centrifugal filtration is mainly used for remove the free water and impurities from the oil,it can be applied to heavy diesel oil, lubricating oil, transformer oil, hydraulic oil, turbine oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil,also can be applied for some of vegetable oil,plant oil which can’t dissolve in water and the density is lower than water, such as peanut oil,palm oil,sunflower oil,turpentine oil etc.



Features:

1. Using high-speed disc centrifuge, separation more thoroughly.
2. Have self-discharging function,automatic trash, continuous and efficient.

3. Using screw oil pump, lower noise, more stable performance.

4. PLC programmable controller, enabling unattended,the operation is simple, safe and reliable.
5. Have integrated protection system (filter blocking alarm, motor overload alarm, power fault phase, protection, over voltage and low voltage protection etc.)



Parameters:

Index Unit HCF-1500 HCF-1500A HCF-2000A HCF-3000A HCF-4000A
Flow Rate L/H 1500 1500 2000 3000 4000
Separating factor a/g 7200 7600 8200 8800 9400
Running speed r/min 7500 7500 8000 8300 8300
Particles μ 2 1
Water content ppm 50
Maximum viscosity cSt ≤320
Power Supply   380V, 50HZ, 3PH ( or Customized )
Motor Power kW 4 4 5 8 8
Heater Power kW 24 24 25 30 36
Total Power kW 28 28 30 38 44
Sludge-discharge   Manual Automatic
Outlet Pressure MPa ≤0.2
Weight Kgs 650 680 900 950 1050
Dimension mm 1000*750*1100 1100*850*1100 1150*850*1100 1200*850*1100 1200*900*1200



Our Main Series Products as following:
DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit
LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments



Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience



Package:

Waterproof Centrifugal Oil Filter Machine Energy Savings ISO9001 Certificate 0
