Responsibility is quality assurance,quality is the life of the brand.
 |
| Place of Origin: | Chongqing,China |
| Brand Name: | HLA |
| Certification: | CE,ISO9001,ISO14001,BV |
| Model Number: | DSP300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case suitable for sea transportation and air transportation |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C,Western Union |
| Supply Ability: | 500sets/year |
| Flow Rate: | 18000L/hour | Filtering Precision: | ≤1 Micron |
|---|---|---|---|
| Water Content: | ≤100ppm | Working Pressure: | ≤ 0.4 Mpa |
| Protection Degree: | IP65 | Fault-Free Working: | ≥4000 H |
| Power Supply: | By Customized | Color: | By Customized |
| Dimension(L*W*H): | Custom Mode | Weight: | Custom Mode |
| High Light: | fuel oil purification system,fuel oil filtration system |
||

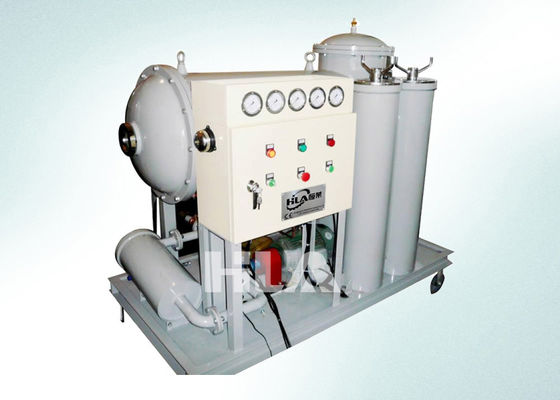

Small Portable IP65 Diesel Fuel Oil Purifier , Light Lube Oil Purification
Why is the water to be removed from oil?
The water in hydraulic oil system could cause oil oxidation, thus make it get bad, reduce its thickness and lubricity, which could change the Oil viscosity and form organic acid, thus corrodes metal surface, reduce or lose the strength of dielectric strength. Our Coalescing Separation Oil Filter Machine combines high precision filtration and high efficient dehydration into one machine, which could remove rust and particles and free water. Its obvious function is water oil separation.
Application:
DSP Coalescence-separation oil purifier is designed to remove free water and dissolved water from lube oils or diesel fuel,coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the water drop by gravity, falling into the water tank. It removes the particles by stages of filters and cleanness up to NAS grade 6. It is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems, especially good for water- leakage systems.
New type multi-functional coalescing separation dehydrator oil filter together with precise filtration and dehydration two functions into one efficient application of advanced "coalescing separation" technology for dehydration, dehydration, high efficiency, ability, especially for oil in a large number of water separation, with the vacuum method, centrifugal method can not be compared advantages, can destroy all of the oil-water emulsion medium structure; filtered through particulate filter system can be media cleanliness, stability control system requirements in the state to ensure the cleanliness of oil; oil does not change the physical, chemical properties, to extend oil life; energy consumption, low operating costs; system configuration fine, continuous performance, suitable for online operation.
Features:
1. Equipped with PLC fully automatic control system.
2. Integrates advantages of gravity method, gasification method, coalescence separation method, vacuum separation, mechanical filtration into one.With the technology of vacuum drying and demulsification, it can separate a large mount of water from the oil, even the micro quantity of moisture. It is good at dewatering and demulsifying, which can make the turbid emulsified oil become clear.
3. Equipped with vacuum analytical evaporation system which can remove the micro quantity of water from the oil and ensure the water content index in the oil. It won’t change the physical and chemical property of the oil, and it can extend the oil service life.
4. Advanced infrared liquid level auto control system, automatic sound and light alarm system, and pressure protection device to ensure the safe and stable operation of machine.
5. Can online process turbine oil and low viscosity lubricants with unattended operation.
Technical Specification
| Model | DSP300 | |
| Capacity(L/min) | 300 | |
| Working pressure | ≤ 0.4 Mpa | |
| Filtering precision | ≤1 micron | |
| Water content | ≤100 ppm | |
| Cleanness level | NAS 6 grade | |
| Continuous work | ≥200 hr | |
| No failure running | ≥5000 hr | |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) | |
| Working noise | 65 dB | |
| Total power (kw) | 5 | |
| Inlet/outlet(mm) | 65 | |
| Weight (kg) | 980 | |
|
Dimension (mm) |
L | 1750 |
| W | 1200 | |
| H | 1850 | |
Our Services:
1. We supply repairing parts for product's life time long and technical instruction.( free within the warranty period and charge beyond warranty period).
2. All our products have been run well and have been adjusted to good state before go to market. Operator only need to do as the instruction manual by pulling the buttons. If some parts broken, operator just need to remove bolts and change new. Please note: the operation and repair is very simple.
3. When the machine send to your company . You can arrange your engineer to our company to learn operate the machine . We will arrange our engineer to teach your company engineer to operate the whole machine .
