Responsibility is quality assurance,quality is the life of the brand.
 |
| Place of Origin: | Chongqing,China |
| Brand Name: | HLA |
| Certification: | CE,ISO9001,ISO14001,BV |
| Model Number: | DSP |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case suitable for sea transportation and air transportation |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500sets/year |
| Condition: | Brand New | Flow Rate: | 10-300L/min |
|---|---|---|---|
| Water Content: | ≤100ppm | Working Pressure: | ≤ 0.4 Mpa |
| Filtering Precision: | ≤1 Micron | Operation Mode: | Automatilc & Manual |
| Power Supply: | By Customized | Color: | Optional |
| High Light: | fuel oil purification system,fuel oil filtration system,dsp coalescence separation oil purifier |
||

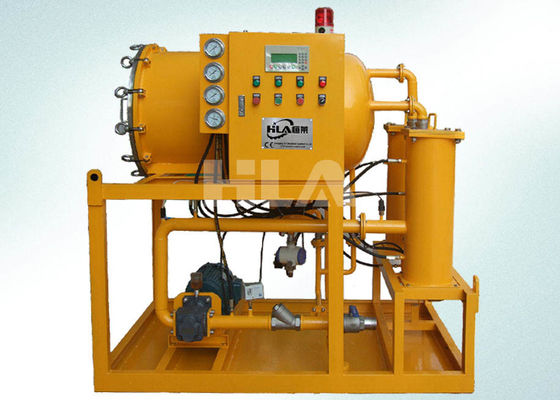

Coalescing Separation Diesel Fuel Oil Purifier DSP Explosionproof Type
Application:
DSP Coalescence-separation oil purifier is designed to remove free water and dissolved water from lube oils or diesel fuel,coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the water drop by gravity, falling into the water tank. It removes the particles by stages of filters and cleanness up to NAS grade 6. It is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems, especially good for water- leakage systems.
Features:
◆ Rapidly removing large amount free & emulsified water from Oil and water content reach 100 PPM.
◆ The coalesced oil takes the least restricted path to exit and rises or floats through the media to the top of the bulk liquid surface.
◆ The working conditions of all the parts are displayed clearly, monitoring, alarming, action control and safety stop enable the oil filtration machine to run online.
◆ Multilayer filtration can remove the impurities through coarse filter, protecting filter, and fine filer.
Technical Specification:
| Model | DSP010 | DSP020 | DSP030 | DSP050 | DSP100 | DSP150 | DSP200 | DSP300 | |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Working pressure | ≤ 0.4 Mpa | ||||||||
| Filtering precision | ≤1 micron | ||||||||
| Water content | ≤100 ppm | ||||||||
| Cleanness level | NAS 6 grade | ||||||||
| Continuous work | ≥200 hr | ||||||||
| No failure running | ≥5000 hr | ||||||||
| Power supply | 380V, 50HZ, 3PH ( or Customized ) | ||||||||
| Working noise | 65 dB | ||||||||
| Total power (kw) | 1 | 1 | 1 | 2 | 2.5 | 3 | 4 | 5 | |
| Inlet/outlet(mm) | 32 | 32 | 32 | 32 | 44 | 50 | 58 | 65 | |
| Weight (kg) | 300 | 350 | 400 | 450 | 520 | 760 | 900 | 980 | |
|
Dimension (mm) |
L | 1200 | 1300 | 1400 | 1500 | 1600 | 1650 | 1650 | 1750 |
| W | 750 | 800 | 900 | 950 | 1000 | 1050 | 1100 | 1200 | |
| H | 1400 | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1850 | |
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Our Main Series Products as following:
DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit
LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments
