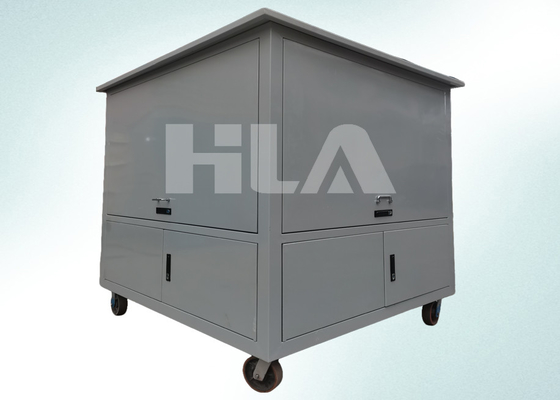

Three Stage Filter Transformer Oil Filtration Machine with PLC Automatic Control

Product Details:

Place of Origin:	Chongqing,China
Brand Name:	HLA
Certification:	ISO9001,CE
Model Number:	DVP30-200

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$2000~$16000
Packaging Details:	Wooden case
Delivery Time:	15 work days
Payment Terms:	L/C, T/T
Supply Ability:	1000 sets

Contact Now

Detailed Product Description

Optional Items:	Online Moisture Tester, Flowmeter, Etc.	Filter Elements:	Three Stages
Condition:	Brand New	Countrol:	PLC Fully Automatic
Ultimate Vacuum:	3~5Pa	Gas Content:	≤0.1%
Temperature:	20~80℃	Filtration Stage:	Double Stage
Highlight:	Three Stage Transformer Oil Filtration Machine , PLC Transformer Oil Filtration Machine

Product Description:

Our Electric Heating system ensures that the oil is heated to the appropriate temperature for effective filtration. The filtration precision of ≤1μm ensures that even the smallest impurities are removed from the oil. With a gas content rating of ≤0.1%, our Transformer Oil Filtration Machine ensures that the oil is free from harmful gases that can damage equipment.

The Transformer Oil Filtration Machine is designed for easy transport, making it ideal for use in different locations. The moveable design means that it can be easily moved from one location to another, making it perfect for use in different transformer substations. Our Transformer oil recycling system is also easy to use, with a simple control panel that displays all the necessary information for effective operation.

At our company, quality is our top priority, and our Transformer Oil Filtration Machine is designed to meet the highest industry standards. Our team of experts has developed this product to ensure that it meets the needs of our customers and provides reliable performance. With our Transformer oil recycling system, you can be assured that your transformer oil will remain clean and free from impurities, ensuring the efficient operation of your equipment.

Investing in our Transformer Oil Filtration Machine is a smart decision for any organization that relies on transformers for daily operations. Our product ensures that your transformer oil remains clean and free from impurities, extending the life of your equipment and reducing the need for costly repairs and replacements. If you're looking for a reliable and effective solution for transformer oil treatment, look no further than our Transformer Oil Filtration Machine.

Technical datas:

Model		DVP30	DVP50	DVP80	DVP100	DVP125	DVP150	DVP200	DVP250	DVP300
Capacity(L/min)		30	50	80	100	125	150	200	250	300
Vacuum level		-0.06~-0.095 Mpa
Working pressure		≤ 0.4 Mpa
Ultimate vacuum		≤ 5 Pa
Temperature range		20-80℃
Filtering precision		≤1 micron
Continuous work		≥200 hr
No failure running		≥5000 hr
Power supply		380V, 50HZ, 3PH ( or Customized )
Working noise		65 dB
Heating power (kw)		24	30	48	60	72	90	125	136	150
Total power (kw)		27	34	54	68	80	100	135	148	165
Inlet/outlet(mm)		32	32	44	44	48	50	55	60	65
Weight (kg)		300	400	500	600	700	800	1000	1150	1300
Dimension (mm)	L	1300	1350	1500	1800	1900	2000	2100	2150	2300
	W	1000	1000	1100	1150	1200	1250	1300	1350	1400
	H	1500	1500	1600	2000	2100	2150	2200	2250	2300

Breakdown voltage	≥ 70KV
Water content	≤ 3ppm
Gas content	≤0.1%
Filtering particles	≥99.5%
Particles size	≤ 1 micron
Cleanness	≤ Grade 6 (NAS)
Processing by regeneration device as following (Optional device)
Acid value	≤ 0.03 mgKOH/g
Water-solubility	≥ 5.4 PH
Flash point (close cup)	≥ 135°C
Dielectric- factor loss	tgδ (90℃)% ≤ 0.005

Applications:

The Transformer Oil Filtration Machine is an essential piece of equipment for power plants and substations. It can be used to purify transformer oil, improve the performance of transformers, extend the service life of transformers, and reduce the risk of transformer failure. The Transformer Oil Filtration Machine can also be used in other industrial applications where transformer oil is used.

The Transformer Oil Filtration Machine is a portable transformer oil purifier that is easy to transport and use. It can be used on-site, in the field, or in the factory. The Transformer Oil Filtration Machine is equipped with electric heating, which ensures that the oil is heated evenly and thoroughly. The machine's high-quality filtration system includes a double-stage filtration process that removes impurities and water from the oil. The filtration precision of the machine is ≤1μm and the cleanness is ≤ Grade 6 (NAS).

The Transformer Oil Filtration Machine can also be equipped with optional items such as an online moisture tester and flowmeter, which can provide real-time monitoring of the oil's moisture content and flow rate. This feature allows users to monitor the condition of the oil and take corrective action if necessary.

The Transformer Oil Filtration Machine is suitable for use in a variety of situations, including routine maintenance, emergency repairs, and system upgrades. It is an ideal choice for those who need a reliable and effective transformer oil purifier plant or transformer oil purifier equipment. With its high-quality filtration system, electric heating, and portable design, the Transformer Oil Filtration Machine is an excellent choice for anyone who needs to purify transformer oil.
