Responsibility is quality assurance,quality is the life of the brand.
 |
| Place of Origin: | Chongqing,China |
| Brand Name: | HLA |
| Certification: | ISO9001,CE |
| Model Number: | DVP30-300 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | $2000~$15000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets |
| Filtration Precision: | ≤1μm | Filter Elements: | Three Stages |
|---|---|---|---|
| Countrol: | PLC Fully Automatic | Optional Items: | Online Moisture Tester, Flowmeter, Etc. |
| Temperature Range: | 0-80°C | Heating Method: | Electric Heating |
| Final Products: | Clean Transformer Oil | Condition: | Brand New |
| Highlight: | Three Stage Transformer Oil Filtration Machine,Element Transformer Oil Filtration Machine,Advanced Electric Transformer Oil Filtration Machine |
||

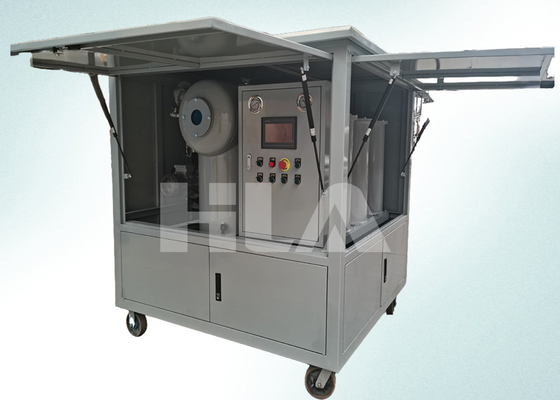

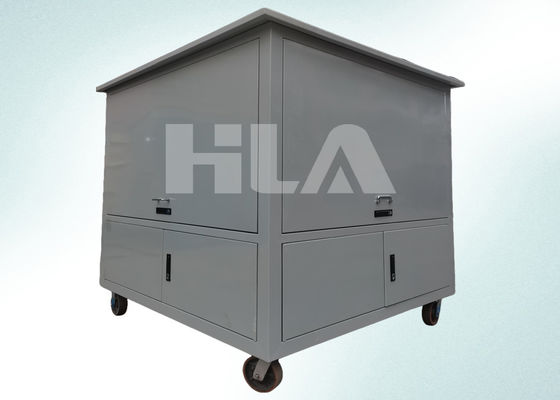

The Transformer Oil Filtration Machine is capable of removing impurities from transformer oil through various processes such as Transformer Oil Dehydration, Transformer oil filtration, and degassing. The filtration precision of the machine is ≤1μm which means it can remove even the smallest of particulates from the transformer oil. The gas content in the transformer oil after filtration is ≤0.1% which ensures that the oil is free from harmful gases that can damage the transformer. The temperature range of the machine is 0-80°C. The machine can operate in a temperature range of 20~80℃. The cleanness of the oil after filtration is ≤ Grade 6 (NAS) which means that the oil is free from any visible impurities.
The Transformer Oil Filtration Machine is a cost-effective solution that can help extend the life of transformers by ensuring that the transformer oil is free from contaminants. The machine is easy to operate and requires minimal maintenance. The machine is designed to be portable which means it can be easily transported to different locations where transformers are located.
The Transformer Oil Filtration Machine has several benefits including reduced transformer downtime, improved transformer efficiency, increased transformer lifespan, and reduced maintenance costs. The machine can also help reduce the environmental impact of transformer oil by ensuring that the oil is free from harmful contaminants.
In conclusion, the Transformer Oil Filtration Machine is a reliable and efficient product that can help ensure the smooth functioning of transformers by providing efficient transformer oil purification. The machine is designed to remove impurities such as water, gases, and particulates from transformer oil through various processes such as Transformer Oil Dehydration, Transformer oil filtration, and degassing. The filtration precision of the machine is ≤1μm, the gas content is ≤0.1%, the temperature range is 0-80°C, and the cleanness of the oil after filtration is ≤ Grade 6 (NAS). The machine is cost-effective, easy to operate, and requires minimal maintenance. The Transformer Oil Filtration Machine is a must-have for anyone who wants to ensure the smooth functioning of transformers and extend their lifespan.
The transformer oil filtration machine is equipped with a double-stage filtration system, which is responsible for removing impurities from the oil. With an impurity size of ≤1μm, the machine ensures that the final product is clean transformer oil, which can be used in various applications. The filtration process is carried out at a temperature range of 20~80℃ and is electrically heated for efficient performance.
The moveable transformer oil purifier is ideal for several applications, including transformer oil purification, transformer oil dehydration, and removal of impurities from the oil. The product application is versatile and can be used in several scenarios, such as in power plants, power transmission, and distribution companies, and other industries that use transformers.
The transformer oil filtration machine is designed to cater to the needs of industries that require high-quality transformer oil for efficient performance. With its impressive filtration capabilities and efficient performance, the DVP30-200 model has become a popular choice for several businesses that require a reliable and efficient transformer oil purification system.
| Model | DVP30 | DVP50 | DVP80 | DVP100 | DVP125 | DVP150 | DVP200 | DVP250 | DVP300 | |||
| Capacity(L/min) | 30 | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |||
| Vacuum level | -0.06~-0.095 Mpa | |||||||||||
| Working pressure | ≤ 0.4 Mpa | |||||||||||
| Ultimate vacuum | ≤ 5 Pa | |||||||||||
| Temperature range | 20-80℃ | |||||||||||
| Filtering precision | ≤1 micron | |||||||||||
| Continuous work | ≥200 hr | |||||||||||
| No failure running | ≥5000 hr | |||||||||||
| Power supply | 380V, 50HZ, 3PH ( or Customized ) | |||||||||||
| Working noise | 65 dB | |||||||||||
| Heating power (kw) | 24 | 30 | 48 | 60 | 72 | 90 | 125 | 136 | 150 | |||
| Total power (kw) | 27 | 34 | 54 | 68 | 80 | 100 | 135 | 148 | 165 | |||
| Inlet/outlet(mm) | 32 | 32 | 44 | 44 | 48 | 50 | 55 | 60 | 65 | |||
| Weight (kg) | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | 1150 | 1300 | |||
|
Dimension (mm) |
L | 1300 | 1350 | 1500 | 1800 | 1900 | 2000 | 2100 | 2150 | 2300 | ||
| W | 1000 | 1000 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | |||
| H | 1500 | 1500 | 1600 | 2000 | 2100 | 2150 | 2200 | 2250 | 2300 | |||
Product Packaging:
Shipping:
Q: What is the brand name of this Transformer Oil Filtration Machine?
A: The brand name is HLA.
Q: What is the model number of this Transformer Oil Filtration Machine?
A: The model number is DVP30-300.
Q: Where is this Transformer Oil Filtration Machine manufactured?
A: It is manufactured in Chongqing, China.
Q: What is the capacity of this Transformer Oil Filtration Machine?
A: The capacity of this machine is 30~300 liters per minute.
Q: Can this Transformer Oil Filtration Machine be used for other types of oil besides transformer oil?
A: No, this machine is specifically designed for transformer oil filtration only.
