Portable Vacuum Dehydrator Oil Purification System With PLC Control System

Portable Vacuum Dehydrator Oil Purification System With PLC Control System

  • Portable Vacuum Dehydrator Oil Purification System With PLC Control System
Portable Vacuum Dehydrator Oil Purification System With PLC Control System
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DFR30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: To be packed in strong wooden cases, suitable for long distance ocean freight transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 1800L/hour Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 40-60℃ Working Pressure: ≤0.3 Mpa
Demulsifying Value: ≤15/min(GB/F7035)+ Acid Value: ≤0.05mKOH/g
Resistance Value: ≥6 X 109 Ω Total Power: 20kw
Power Supply: By Customized Color: Bule,white,green,yellow To Optional
High Light:

vacuum oil filter machine


oil vacuum system


plc control fire resistant oil purifier

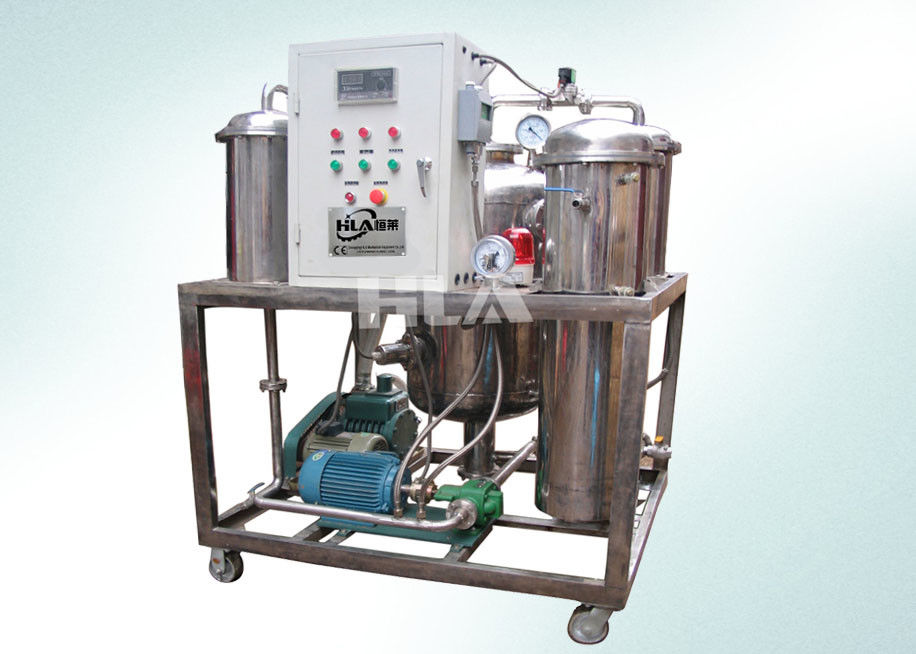

Portable Vacuum Dehydrator Oil Purification System With PLC Control System



Series DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid,pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil,combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series DFR is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.

It is a professional machine to purify phosphoric acid ester anti-fuel oil. This machine is a multi-function vacuum oil purifier which is made of stainless steel and fluoro rubber seal material. It can degas, dehydrate, remove impurities, remove acid, demulsify and defoam. It can work on line or work alone to ensure the system run efficiently. When it work on line, no need operator, the running state is shown on the indicating lamps. This machine can remove not only 100% free water and 80% dissociated water, but also 100% free gas and 80% dissociated gas.

The 1 micron filter will remove impurities . If need higher filtration precision, customer can choose 1 micron filter. To remove acid, we use Germany brand - resin filter with dry ion exchange technology.



▲ It can be moved easily for its lightness

▲ The adaptability of the materials and phosphate is good. No leakage and corrosion

▲ Controlling automatically and operating at a lower temperature.Cleaning at a pure physical environment.No secondary pollution.

▲ It can not only remove free water and gas in the oil efficiently, but also remove 100% free water and 90% dissolved water and gas deeply.

▲ Selection of newly stainless steel materials and special filter materials, progressive filter, to remove the large number of impurities in the oil to achieve precision filtration.

▲ This fire-resistant oil recycling machine is made by the 304 anti-acid and anti-dissolution stainless steel and the filter in made by the materials that couldn’t dissolve with fire-resistant oil. It is beautiful,light,easy to operate with a lower working noise and a long service life.

▲ The device equipped with automatic infrared liquid level control system, automatic pressure protection system to ensure safe and reliable operation of high-performance equipment.

▲ Filtering the oil online without nobody on duty. Lights indicates the operation of the machine.


Technical Specification:

Model Unit DFR30
Capacity L/H 1800
Working vacuum MPa -0.06~-0.095
Working pressure MPa ≤0.3
Demulsifying value min ≤15/min(GB/F7035)+
Water content ppm ≤5
Gas content % ≤0.1%
Acid value mKOH/g ≤0.05
Resistance value Ω ≥6 x 109 Ω
Filtering accuracy micron ≤1
Cleanness   ≥ NAS 6 grade
Power supply   380V 50HZ(As per user's option)
Working noise dB(A) ≤65~80
Temperature range ºC 40~60
Heating power Kw 16
Total power Kw 20
Weight Kg 450
Dimension L mm 1200
W mm 1050
H mm 1700

Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
