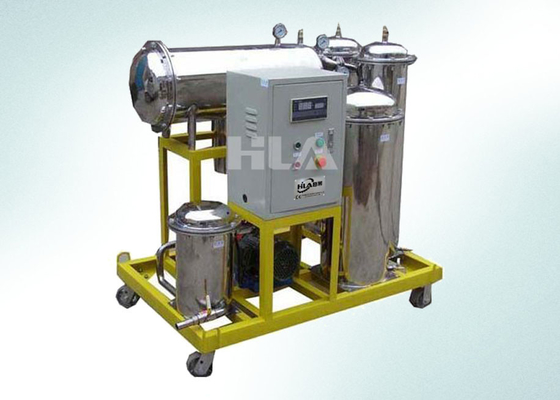

Automatic Fire Fesistant Oil Purification Machine With Interlocked Protective System

Automatic Fire Fesistant Oil Purification Machine With Interlocked Protective System

  • Automatic Fire Fesistant Oil Purification Machine With Interlocked Protective System
Automatic Fire Fesistant Oil Purification Machine With Interlocked Protective System
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DFR10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 4tons/day Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 40-60℃ Working Pressure: ≤0.3 Mpa
Demulsifying Value: ≤15/min(GB/F7035)+ Acid Value: ≤0.05mKOH/g
Resistance Value: ≥6 X 109 Ω Material: Stainless Steel
Power Supply: By Customized Color: Optional
High Light:

vacuum oil filter machine


oil vacuum system

Automatic Fire Fesistant Oil Purification Machine With Interlocked Protective System



Series DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid,pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil,combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series DFR used to regenerate and purify fuel-resistant hydraulic oil specially used for large and medium sized power plants over 300 thousand KW. Taking the characteristic of phosphate ester into consideration, it uses stainless steel and special airproofmaterial to ensure non-leakage, non-second pollution.It is designed to treat and regeneratefire-resistant hydraulic oil in big and medium-size thermoelectric generator system..



○ Stainless steel and special airproof material to ensure non-leakage and non-erosion.

○ It is designed for phosphate ester. Low temperature operation and total physical purification will not bring about any additional damage. The absorption function can highly reduce operating cost.

○ It is light and easy to move. It can filter online as well as switch moving.

○ It is a multi-function purifier and has the ability to remove gas water, impurity, bubbles and acid as well as break emulsion.

○ It is highly automatic and has high pressure protection, infrared liquid level control system, chain alarms and online operation,safe and easy.


Technical Specification:

Model Unit DFR10(Horizontal type)
Capacity L/H 600
Working vacuum MPa -0.06~-0.095
Working pressure MPa ≤0.3
Demulsifying value min ≤15/min(GB/F7035)+
Water content ppm ≤5
Gas content % ≤0.1%
Acid value mKOH/g ≤0.05
Resistance value Ω ≥6 x 109 Ω
Filtering accuracy micron ≤1
Cleanness   NAS 6 grade
Power supply   380V 50HZ(As per user's option)
Working noise dB(A) ≤65~80
Temperature range ºC 40~60
Heating power Kw 9
Total power Kw 12
Weight Kg 350
Dimension L mm 1200
W mm 950
H mm 1600


Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience


Our Main Series Products as following:
DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit
LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments

Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
