Responsibility is quality assurance,quality is the life of the brand.
 |
| Place of Origin: | Chongqing,China |
| Brand Name: | HLA |
| Certification: | ISO9001,CE,ISO14001,BV |
| Model Number: | DFR10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case suitable for sea transportation and air transportation |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 sets/year |
| Flow Rate: | 600L/hour | Filtering Precision: | ≤1 Micron |
|---|---|---|---|
| Water Content: | ≤5ppm | Gas Content: | ≤0.1% |
| Temperature Range: | 40-60℃ | Working Pressure: | ≤0.3 Mpa |
| Demulsifying Value: | ≤15/min(GB/F7035)+ | Acid Value: | ≤0.05mKOH/g |
| Resistance Value: | ≥6 X 109 Ω | Clean Degree: | ≤4 Grade (NAS1638) |
| Power Supply: | By Customized | Color: | Several Color By Optional |
| Highlight: | Stainless Steel Vacuum Oil Purifier,Fire Resistant Vacuum Oil Purifier |
||

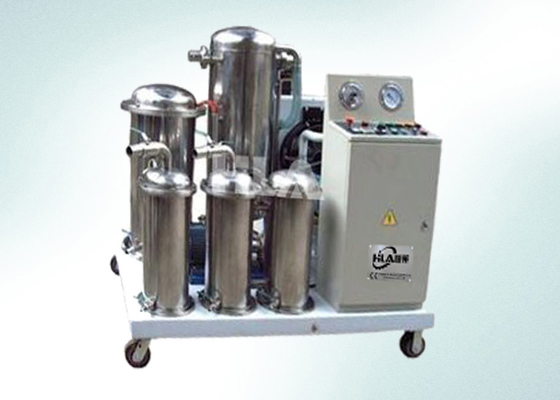

Stainless Steel Vacuum Oil Purifier For Phosphate Ester Fire Resistant Oil
Application:
Series DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid,pigment, gas, water and particles.
This machine body uses the special metal materials which are compatible with fire-resistant oil,combinedwith technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series DFR is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.
Features&Advantages:
1. Use of special metal material compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent
2. Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.
3. Duplex-Stereo film evaporation technologywith unique and advanced dewatering, degassing components to effectively remove water, gas, particles and volatile matter.
4. Advanced medium cooling system
5. Separate large mount of water and also remove micro amount of water from oil.
6. Special film evaporation and molecule evaporation technology enables quick demulsifying and make the turbid and emulsified oil clear.
7. The film evaporation and molecule evaporation technology is of lifetime service(above 20 years), which avoids the periodic demulsifying filter replacement and also reduces the cost of purification and work intensity.
8. With strong impurities removing capability, its automatic backwash filter element can remove large mount of impurities. Large area deep level precision filtration material can remove the granules from the oil, serving as displacement of oil system cleaning device, which brings serious contaminated oil system back to within the “Serving Steam Turbine Oil Contamination Control Standard”.
9. High automation, small size, safe and reliable. The machine adopts infrared liquid level automatic control device to achieve the man-machine detachment, which makes the operation simpler and more reliable.
Technical Specification:
| Model | Unit | DFR10 | |
| Capacity | L/H | 600 | |
| Working vacuum | MPa | -0.06~-0.095 | |
| Working pressure | MPa | ≤0.3 | |
| Demulsifying value | min | ≤15/min(GB/F7035)+ | |
| Water content | ppm | ≤5 | |
| Gas content | % | ≤0.1% | |
| Acid value | mKOH/g | ≤0.05 | |
| Resistance value | Ω | ≥6 x 109 Ω | |
| Filtering accuracy | micron | ≤1 | |
| Cleanness | ≥ NAS 6 grade | ||
| Power supply | 380V 50HZ(As per user's option) | ||
| Working noise | dB(A) | ≤65~80 | |
| Temperature range | ºC | 40~60 | |
| Heating power | Kw | 9 | |
| Total power | Kw | 12 | |
| Weight | Kg | 350 | |
| Dimension | L | mm | 1200 |
| W | mm | 950 | |
| H | mm | 1600 | |
Our Main Series Products as following:
DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit
LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
