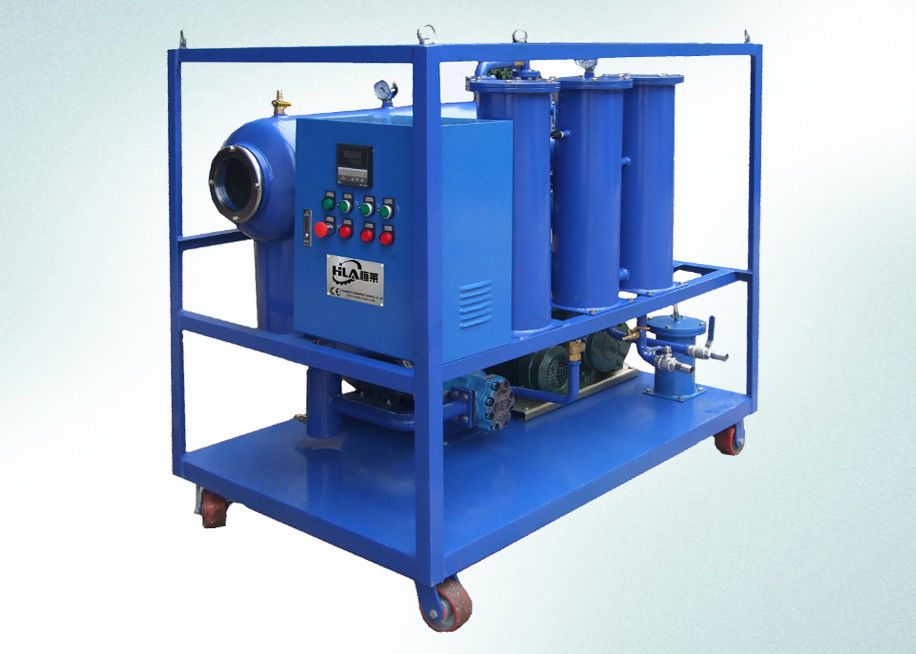

Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength

Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength

Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength
Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength
Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: SVP300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 18000L/hour Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Operation Mode: Automatilc & Manual
Color: Optional Power Supply: By Customized
Total Power: 148kw Working Noise: 65 DB
High Light:

transformer oil filter machine

,

transformer oil filtration equipment

Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength



Application:

SVP Series Transformer Oil Filtration Machine can remove liquid water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, vacuum oiling, and vacuum pumping.



Duplex-Stereo 3D film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.



Multi-stage precision filtration system, stainless steel filters’ filtration combined with molecular adsorption technologies, remove different sizes of impurities and particles thoroughly.



Efficient carbon infrared electric heating system, heating uniformity, less power consumption, safe, and reliable.

Double-infrared liquid level controlling system and pressure protective system ensure the machine operation easy and safely.



Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor, monitoring and controlling oil’s actual heating condition and temperature.



Can work as vacuum oil filling machine, vacuum drying system and vacuum pumping system.

Small volume, light weight, easily movable, low maintenance cost and time.



Features:

1). The oil purifier use special duplex space solid flash evaporation, can remove the water content and gas rapidly, this system need no maintain.

2). Trash extraction technology composed by reticulation filtration and high macular adsorption, use excellent quality filter, can contain a large amount of waste, encrypt progressive, high precision, more than one degrade purifier.

3). Safe heat system, the most excellent pipeline, make sure there is no died oil area.

4). Double infrared ray liquid control automatically, control inlet and outlet the oil smoothly, to achieve man separate with machine really.

5). the oil recycling can be used absolutely and also can used with oil regeneration system, it can deacidification ,

decoloring, reduce the device, PH value, then enhance the insulation value of oil.

6). This machine can be used in vacuum oiling and vacuum dryness of insulation electrical device.

7). It can be used for testing insulator withstand voltage and print the result.(ZJY Series)

8). This machine has the ability of vacuum oiling and can electrification operate every degrade of transformer oil.

9). There is trinity interlock and protection device(phase protection, thrashing protection,overexpressure protection),use the precision oil pump special design by our company, low noise, can satisfy the high standard of international.



Technical specification:

Model SVP300
Capacity(L/min) 300
Vacuum level -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 20 ~ 80℃
Filtering precision ≤1 micron
Continuous work ≥200 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 130
Total power (kw) 148
Inlet/outlet(mm) 65
Weight (kg) 1150

Dimension

(mm)

L 1800
W 1350
H 2000



Index Of Purified Oil:

Breakdown voltage ≥ 65KV
Water content ≤ 5ppm
Gas content ≤ 0.1%
Filtering particles ≥ 99.5%
Particles size ≤ 1 micron
Cleanness ≤ Grade 6 (NAS)
Processing index by regeneration device as following (customer's preference)
Acid value ≤ 0.03 mgKOH/g
Water-solubility ≥ 5.4 PH
Flash point (close cup) ≥ 135°C
Dielectric- factor loss tgδ (90℃)% ≤ 0.005



Optional Mode:

1) The customers' request can be met by adopting PLC intelligent control, touch screen and dynamical display.

2) On line water tester is available.

3) Available in mobile option, immovable option and trailer.

4) Oil purifier can be made in hermetical, canop-covering. open and frame style.

5) Color of the oil purifier can follow customer's favor



Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength 0Auto Waste Transformer Oil Filtration Machine To Improving Oil Dielectric Strength 1
