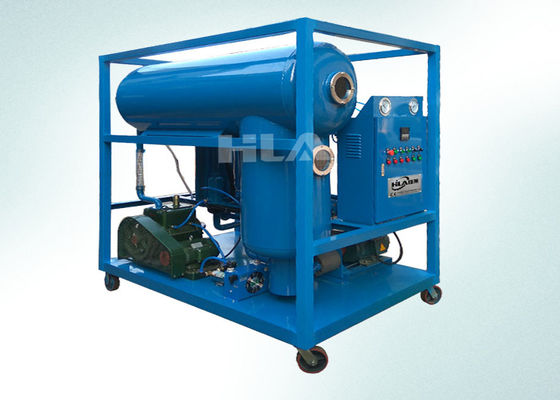

Consistent Operation Transformer Oil Filter Machine With Interlocked Protective System

Consistent Operation Transformer Oil Filter Machine With Interlocked Protective System

Consistent Operation Transformer Oil Filter Machine With Interlocked Protective System
Consistent Operation Transformer Oil Filter Machine With Interlocked Protective System
Consistent Operation Transformer Oil Filter Machine With Interlocked Protective System
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: SVP200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 12000L/hour Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Operation Mode: Automatilc & Manual
Color: Optional Power Supply: By Customized
Machine Power: 120KW Material: Cabon Steel Or Stainless Steel
High Light:

transformer oil filtration equipment


transformer oil processing equipment


120KW transformer oil filter machine

Consistent Operation Transformer Oil Filter Machine With Interlocked Protective System



SVP series efficiency single stage vacuum transformers insulation oil purifier can quickly and effectively remove water, gas, oxide materials, fee carbon and other impurities from transformer oil to lower the PH value, improve breakdown voltage and quality.


SVP Series single-stage vacuum transformer oil filtration machine is developed from ZY Series, mainly designed for using at the power station, industrial and mining enterprises to purify the unqualified or new transformer oil when power transformer below 110 kV, mutual inductor oil, switch oil, etc.


SVP Series Transformer Oil Purifier, equipped with and controlled by PLC system, which can be operated fully automatically. Operator just monitor its operation at side, operation status will be shown on the PLC touch screen. Meanwhile, one set of oil dielectric strength tester is provided along with SVP Series to test BDV value at any time if necessary.


SVP Series Oil Purifier effectively removes liquid water, trace water, gas, and particles from oil quickly, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, vacuum oiling, and vacuum pumping.


This vacuum insulation oil filtration machine can live line work on the spot and also can be suitable to purify other insulating oils, such as capacitor oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil and so on.



▼ High efficiency degassing and dehydration system. It has adopted vacuum flash vaporiztion technology to remove water and gas in oil

▼ Precise filtration system, high-quality filter element, multi-stage filtration with gradual precisiion can help to remove mechanical impurities in the oil.Function of automatically detecting the pollution degree of filter element

▼ Safe heating system with swirling tube,quick temperature increasing, stable and even temperature

▼ An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.

▼ Obvious effect on degraded insulating oil treatment online with its lamps indicative of the conditions of operation.and it is designed flexibly with low noise ,deep purification and free maintenance.

▼ Chain safely protection system,an interlocking of oil drainage system,vacuum system and heating system,which avoids any possible negative impacts caused by incorrect manipulation.

▼ Indication for changing filters, stop device for overloaded filters.

▼ Stop device for electricity leakage and overload power to protect the motor.

▼ Phase-sequence and open-phase protection,Safety control for sudden shut-down.


Technical specification:

Model SVP200
Capacity(L/min) 200
Vacuum level -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 20 ~ 80℃
Filtering precision ≤1 micron
Continuous work ≥200 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 108
Total power (kw) 120
Inlet/outlet(mm) 65
Weight (kg) 1050



L 1650
W 1250
H 1920


Index Of Purified Oil:

Breakdown voltage ≥ 65KV
Water content ≤ 5ppm
Gas content ≤ 0.1%
Filtering particles ≥ 99.5%
Particles size ≤ 1 micron
Cleanness ≤ Grade 6 (NAS)
Processing index by regeneration device as following (customer's preference)
Acid value ≤ 0.03 mgKOH/g
Water-solubility ≥ 5.4 PH
Flash point (close cup) ≥ 135°C
Dielectric- factor loss tgδ (90℃)% ≤ 0.005


Consumable Material & After-sales Service:

We take full advantage of our years of experience in oil filtration filed to supply reliable machine. Special engineered design features, top-quality components and workmanship ensure years of maintenance-free operation and performance.


Usually the only consumable material of the machine is the filter elements. All other parts or elements seldom have problem because of high and stable quality.


If any problem, we will supply replacing parts (free within warranty period, charge reasonably beyond warranty period).
