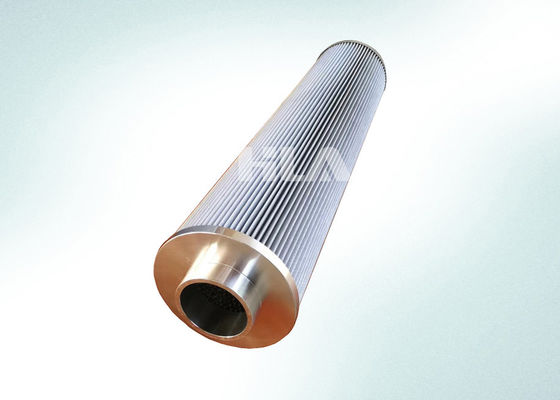

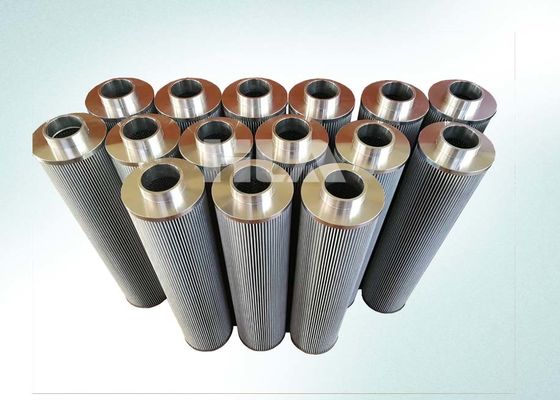

Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering

Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering

  • Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering
  • Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering
  • Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering
  • Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering
Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: ISO9001,CE,ISO14001
Model Number: 1μ,3μ,5μ,10μ,20μ,50μ,80μ,100μ
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Waterproof and shockproof wooden case packing
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/year
Contact Now
Detailed Product Description
Flow Rate: 10~300L/s Filtering Precision: 0.5μ,1μ,3μ,5μ,10μ,20μ,50μ,80μ,100μ
Filtration Pressure: 21 Bar ~ 210 Bar Working Temperature: - 30 ~ + 110℃
Material: Fiberglass/Stainless Steel Mesh Guaranty: 12months
Suitable For: Transformer Oil,Lubricating Oil,Turbine Oil,Cooking Oil Reuse: Cleanable For >20μ
High Light:

filter accessories

,

filter element

Various Vacuum Oil Purifier Oil Filter Element Parts For Different Stage Filtering



Application:

This oil filter element is mainly suitable to oil purifier machine for remove the impurity and particles at vacuum state. It can always be used in transformer oil purifier,hydraulic oil purifier,lubricating oil purifier,turbine oil purifier,cooking oil purifier etc.This filter element is mainly composed of fiberglass ,stainless steel,aluminum,It also can be used for oil water separate equipment,air compressor, and the lubrication system of electric power industrial,metallurgical industrial,petroleum chemical industrial,machinery and equipment industrial etc.The 50~100μ filter can be rewashing.



Product Description:

1. Mass media: general hydraulic oil phosphate ester hydraulic oil emulsion water - glycol
2. Material quality: glass fiber filter paper - BN stainless steel woven mesh - W wood pulp filter paper - P stainless steel sintering network - V
3 .Filtration precision: 1 u to 100 u
4. Work pressure: 21 bar to 210 bar
5. Working medium: general hydraulic oil, hydraulic oil, phosphate ester emulsion, water - ethylene glycol
6. Working temperature: - 30 ℃ ~ + 110 ℃
7. Sealing material: fluorine aprons Nitrile butadiene rubber



Technical parameters:

Index name Unit 0.5μ 10μ 20μ 50μ 80μ 100μ
Flow rate L/s 10~400L/s
Filtration pressure MPa 0.3~0.4MPa
Working temperature - 30 ~ + 100℃
Features   Fireproof, Static protection
Material   Fiberglass Stainless steel Mesh
Top caps   Aluminum alloy
End caps   Galvanized
Weight Kg 2.2kg
Dimension mm 120mmx480mm



Our Honor and Quality Certificate:

China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience



Relative Information:

1.Maintenance

1). check and adjust after oil purifier works for a period of time

1. all the electric control apparatus

2. temperature controller

3. oil seals and motor couplings

4. clean filter elements, check pumps and motors

5. all the pipes for leaking

2). Clean the motor and change the lubricating grease

3). Check and add specified lubricating oil to vacuum pump,

4). If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas

2.Customer Service

Installation

Commissioning

Complete Turnkey Applications

Spare parts

Service And Maintenance Schemes

Technical Support Network



Our Services:

Since the foundation of our company, we have been devoting our efforts to developing better purifiers for energy saving. With the intellectual support form our first-rate oil purification experts and encouraged by the company's modern management mechanism, we have developed twelve series of products, including hundreds of oil purifier models,such as transformer oil purifier,lube oil purifier,turbine oil purifier,cooking oil purifier,diesel oil purifier,engine oil recycling,motor oil purification,fuel oil purifier,centrifugal oil purifier,heavy oil water separator,hydraulic oil purifier etc.



Our equipment can be applied to many fields, such as electric power, petroleum chemical, metallurgical industry, mining, aviation, shipping railway and so on.

We adhere to the tenet of mutual-benefit and win-win business. With the sincere and pragmatic work attitude, we would like to open up a new oil purification are with our customers.
