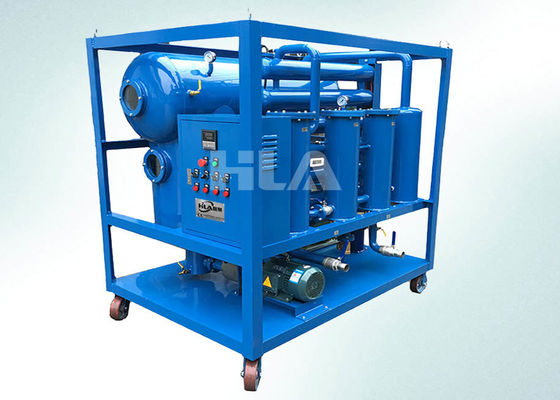

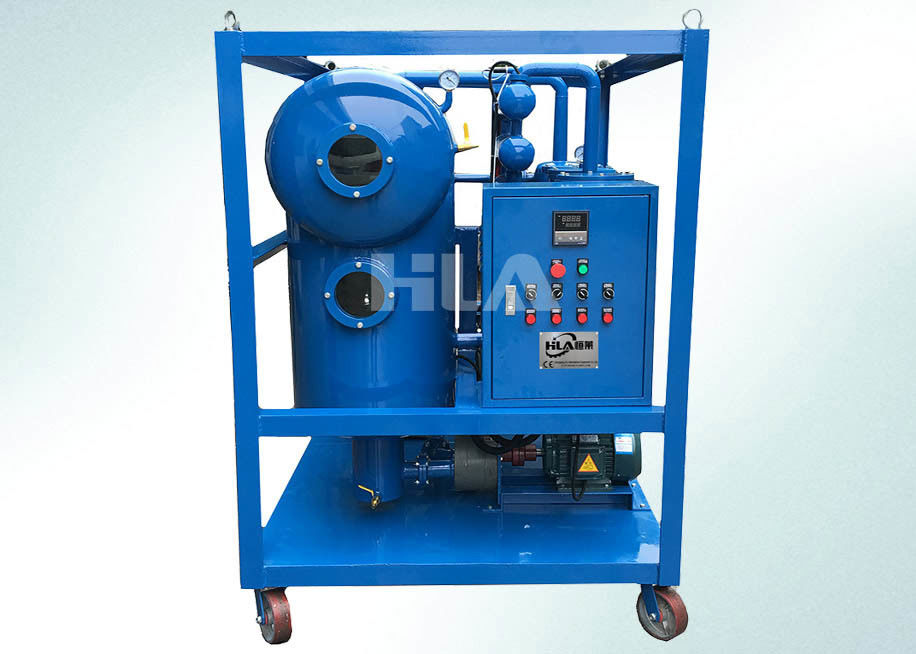

SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage

SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage

SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage
SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage
SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: ISO9001,CE,ISO14001,SGS
Model Number: SVP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 10~300L/minute Filtering Precision: ≤1 Micron
Water Content: ≤3ppm Gas Content: ≤0.1%
Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Operation Mode: Automatilc & Manual
Color: Optional Power Supply: By Customized
High Light:

transformer oil filter machine

,

transformer oil processing equipment

,

svp series single stage vacuum transformers

SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage



Application:

SVP series efficiency single stage vacuum transformers insulation oil purifier can quickly and effectively remove water, gas, oxide materials, fee carbon and other impurities from transformer oil tolower the PH value, improve breakdown voltage and quality. Also serving as the vacuum oiling equipment and drying equipment, SVP vacuum transformer oil purifier adoptshigh vacuum oil dehydrator and degasification system and duplex-Stereofilm evaporating technology for drying insulation oil and recover the dielectric strength. This vacuum insulation oil purification machine can live line work on the spot and also can be suitable to purify other insulating oils, such as capacitor oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil and so on.



Features:

◆ Horizontal vacuum separation technology, high efficient separation of vacuum degassing, exponentially increase evaporation area, increase the retention time of the oil keep in the vacuum chamber, high efficient and reliable.

◆ Radiant heating system, enhance the contact area of the oil and oil heater, reduce the surface temperature of the heater, put an end to oil cracking aging.

◆ Fault protection, Heater protection, prevent heater dry, pressure protection, discharge fault alarm and motor alarm.

◆ Vacuum pump front cooler, reduce the water into the vacuum pump,and reduce the frequency of replace the vacuum pump oil, extend the life of the vacuum pump.

◆ Patent holder degassing tank "foam protection structure + two-way foam electronic monitoring system", to prevent vacuum pump oil injection.

◆ Automatic oil floating ball and automatic oil level electronic control system, realize the man-machine separation

◆ Using high pressure oil pump, put oil in/out through machine stability, low noise, long work life.

◆ Stainless steel mesh filters, acid resistant and anti-corrosion, large filtration area, strong suction sewage capacity, high working efficiency.



Technical specification:

Model SVP10 SVP20 SVP30 SVP50 SVP80 SVP100 SVP150 SVP200 SVP300
Capacity(L/min) 10 20 30 50 80 100 150 200 300
Vacuum level -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 20 ~ 80℃
Filtering precision ≤1 micron
Continuous work ≥200 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 15 15 24 30 48 60 90 108 130
Total power (kw) 16.8 16.8 26 33 52 66 100 120 148
Inlet/outlet(mm) 25 32 32 38 44 50 58 65 25
Weight (kg) 240 250 280 320 600 750 900 1050 1150

Dimension

(mm)

L 1100 1130 1220 1300 1350 1420 1600 1650 1800
W 760 800 820 900 1000 1000 1200 1250 1350
H 1100 1220 1300 1310 1350 1750 1900 1920 2000



Index Of Purified Oil:

Breakdown voltage ≥ 65KV
Water content ≤ 5ppm
Gas content ≤ 0.1%
Filtering particles ≥ 99.5%
Particles size ≤ 1 micron
Cleanness ≤ Grade 6 (NAS)
Processing index by regeneration device as following (customer's preference)
Acid value ≤ 0.03 mgKOH/g
Water-solubility ≥ 5.4 PH
Flash point (close cup) ≥ 135°C
Dielectric- factor loss tgδ (90℃)% ≤ 0.005



SVP Transportable Transformer Oil Purifier Machine On Line Work Single Stage 0
