High Effective Vacuum Dehydration Unit Oil Vacuum System Explosion Proof  

High Effective Vacuum Dehydration Unit Oil Vacuum System Explosion Proof  

  • High Effective Vacuum Dehydration Unit Oil Vacuum System Explosion Proof  
High Effective Vacuum Dehydration Unit Oil Vacuum System Explosion Proof  
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DFR200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 12000L/hour Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 40-60℃ Working Pressure: ≤0.3 Mpa
Demulsifying Value: ≤15/min(GB/F7035)+ Acid Value: ≤0.05mKOH/g
Resistance Value: ≥6 X 109 Ω Cleanness: ≤ Grade 6 (NAS)
Power Supply: By Customized Color: Optional
High Light:

vacuum oil filter machine

,

vacuum dehydrator oil purification system

,

explosion proof vacuum dehydration unit

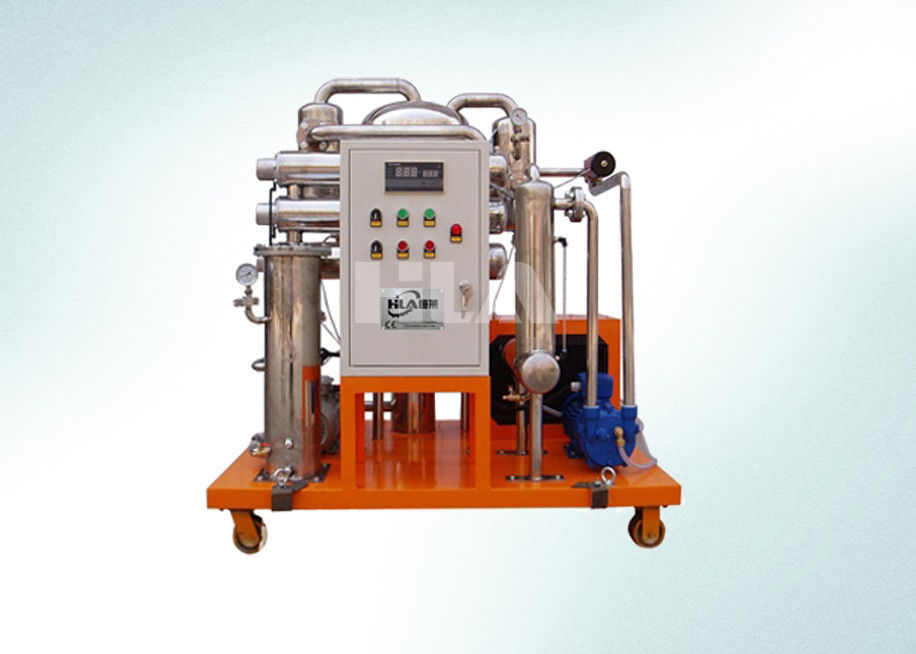

High Effective Vacuum Dehydration Unit Oil Vacuum System Explosion Proof



Application:

Series DFR is latest model of vacuum oil purifier designed for purifying the unqualified phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series DFR is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.

DFR series oil purifier are also suitable for purifying and restoring hydraulic oil,machine oil,coolant oil and various other lubrication oil.Most of breakdown of machinery which has lubrication oil system results from contaminated lubrication in which has water,gas,impurities etc.LV series can rapidly remove water,gas,particulate matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.



Features:

1. Use of special metal materials which is compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent

2. Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.

3. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter

4. Advanced medium cooling system

5. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.

6. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.



Technical Specification:

Model Unit DFR200
Capacity L/H 12000
Working vacuum MPa -0.06~-0.095
Working pressure MPa ≤0.3
Demulsifying value min ≤15/min(GB/F7035)+
Water content ppm ≤5
Gas content % ≤0.1%
Acid value mKOH/g ≤0.05
Resistance value Ω ≥6 x 109 Ω
Filtering accuracy micron ≤1
Cleanness   ≥ NAS 6 grade
Power supply   380V 50HZ(As per user's option)
Working noise dB(A) ≤65~80
Temperature range ºC 40~60
Heating power Kw 46
Total power Kw 50
Weight Kg 800
Dimension L mm 1900
W mm 1500
H mm 2000



Packaging & Delivery:

1) Prompt deliver at the very day.

2) Well-trained and disciplined packing team.

3) After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4) Sophisticated and professional logistic agent.



Our Services:

Since the foundation of our company, we have been devoting our efforts to developing better purifiers for energy saving. With the intellectual support form our first-rate oil purification experts and encouraged by the company's modern management mechanism, we have developed twelve series of products, including hundreds of oil purifier models,such as transformer oil purifier,lube oil purifier,turbine oil purifier,cooking oil purifier,diesel oil purifier,engine oil recycling,motor oil purification,fuel oil purifier,centrifugal oil purifier,heavy oil water separator,hydraulic oil purifier etc.

Our equipment can be applied to many fields, such as electric power, petroleum chemical, metallurgical industry, mining, aviation, shipping railway and so on.

We adhere to the tenet of mutual-benefit and win-win business. With the sincere and pragmatic work attitude, we would like to open up a new oil purification are with our customers.
