Multi Function Transformer Portable Oil Filtration Systems Small Volume Light Weight

Multi Function Transformer Portable Oil Filtration Systems Small Volume Light Weight

Multi Function Transformer Portable Oil Filtration Systems Small Volume Light Weight
Multi Function Transformer Portable Oil Filtration Systems Small Volume Light Weight
Multi Function Transformer Portable Oil Filtration Systems Small Volume Light Weight
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: VPM300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 120tons/day Filtering Precision: ≤1 Micron
Water Content: ≤3ppm Gas Content: ≤0.1%
Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Color: Blue,white,green,yellow For Optional
Power Supply: By Customized Cleanness: ≤ Grade 6 (NAS)
Total Power: 168KW Condenser: Each For The Vacuum Pump And Roots Pump
High Light:

mobile transformer oil purifier


mobile oil purification plant

Multi Function Transformer Portable Oil Filtration Systems Small Volume Light Weight

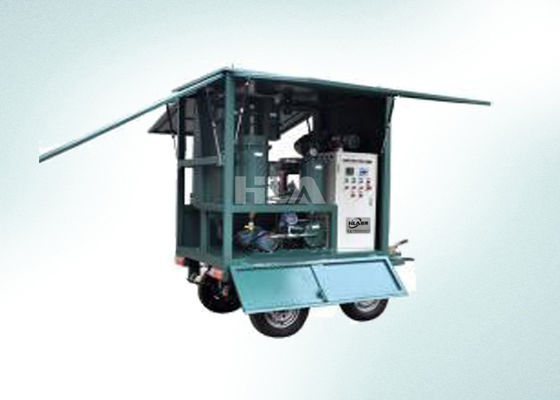

VPM Moveable Weather-proof type Vacuum Transformer Oil Purifier is developed for transformer oil degasification, dehydration and filtration processing on site at outside. It adopts full enclosed structure with function of weather proof. The Transformer Oil Purifier Machine adopts double stages high vacuum system and horizontal vacuum separators. VPM Moveable Weather-proof type Transformer Oil Purifier with trailer can be carried out on road and off road. Meanwhile, it also works with other electrical insulating oil such as cable, circuit breakers, capacitor etc. The Purification Process of VPM Transformer Oil Purifier is able to maintain complete cleanness and improve dielectric strength of insulating oil.


Description of VPM machine:

1. Fully automatic operation controlled by PLC system, more easily and conveniently.

2. Duplex-Stereo 3D film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

3. Stainless steel filters’ filtration combined with molecular adsorption technologies, remove different sizes of impurities and particles thoroughly.

4. Efficient carbon infrared electric heating system, heating uniformity, less power consumption, safe, and reliable.

5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

6. Fully automatic temperature controlling system, digital type temperature gauge and temperature sensor, monitoring and controlling oil’s actual heating condition and temperature.

7. Can works as vacuum oil filling machine, vacuum drying system and vacuum pumping system.

Small volume, light weight, easily movable, low maintenance cost and time.


Technical Parameters:

Model VPM-300
Capacity(L/min) 300
Vacuum level -0.06~-0.099 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 20 ~ 80℃
Filtering precision ≤1 micron
Breakdown voltage ≥ 75KV
Water content ≤ 3ppm
Gas content ≤ 0.1%
Filtering particles ≥ 99.5%
Power supply 380V, 50HZ, 3PH (or customized )
Working noise 65 dB
Heating power (kw) 150
Total power (kw) 168
Inlet/outlet(mm) 70
Purifier Weight (kg) 2000
Trailer Weight (kg) 900




L 1800
W 1400
H 2000

Trailer Dimension


L 3200
W 1400
H 1200



1. Horizontal double vacuum separation technology, doubling the evaporation area and degassing time

2. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa

3. Multi-stage precise filtration system with gradually increasing precision, which can effectively remove mechanical impurities from oil.

4.Fully automatic temperature controlling system and multi-stages electric oil heater adopts low-load design to ensure uniform heating oil, the load is less than 1.0W/cm2, oil level and temperature protection of heater, which avoid cracking and aging of oil.

5. Automatic defoaming system with dual electronic monitoring system, which avoid the foam ejecting and gushing to vacuum pump.

6. Advanced cooling system of vacuum pump, it reduces the frequency of oil’s replacement and extends the life of vacuum pump.

7. Advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures the long-term safe and reliable operation of the equipment.

8. Online oil treatment, vacuum drying and vacuum oil-filling for electric equipments.

9. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status,drying the insulating oil very well, improve the breakdown voltage up to 75 KV quickly. Have a big improvement on the one time purification result,reduce the dangerous of oil aging caused by repeat heating on the ordinary oil purifier.


Index Of Purified Oil:

Breakdown voltage ≥ 75KV
Water content ≤ 3ppm
Gas content ≤0.1%
Filtering particles ≥99.5%
Particles size ≤ 1 micron
Cleanness ≤ Grade 6 (NAS)
Processing by regeneration device as following (Optional device)
Acid value ≤ 0.03 mgKOH/g
Water-solubility ≥ 5.4 PH
Flash point (close cup) ≥ 135°C
Dielectric- factor loss tgδ (90℃)% ≤ 0.005
