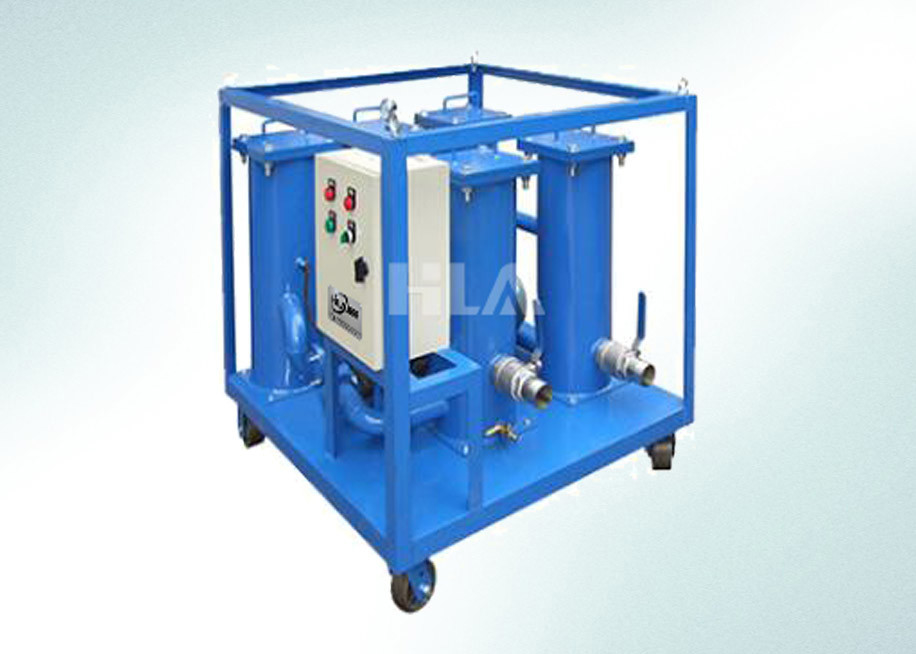

Five Stages Filtering Portable Oil Purifier Machine , Oil Impurity Removing

Five Stages Filtering Portable Oil Purifier Machine , Oil Impurity Removing

  • Five Stages Filtering Portable Oil Purifier Machine , Oil Impurity Removing
Five Stages Filtering Portable Oil Purifier Machine , Oil Impurity Removing
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 7 days
Payment Terms: T/T, L/C,Western Union
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Flow Rate: 80tons/day Filtering Precision: ≤1 Micron
Working Pressure: ≤0.4 Mpa Head (m): ≥15 Meter
Treatment Method: No Chemicals,no Heating Cleanness: ≤ Grade 6 (NAS)
Power Supply: By Customized Color: Optional
High Light:

portable oil filter cart


portable oil filtration cart


five stages oil purifier machine

Five Stages Filtering Portable Oil Purifier Machine , Oil Impurity Removing



DK series oil purifier machine is the ideal way to pre-filter and transfer fluids into reservoirs or to clean up existing systems. Fluid should always be filtered before being put into use.Solid particle pollution leads to the failure of hydraulic system and lubricating system, so it is necessary to filter the industrial oil before pour it into system. New fluid is not necessarily clean fluid. Most new fluids (right out of the drum) are unfit for use due to high initial contamination levels. Contamination, both particulate and water, may be added to a new fluid during processing, mixing, handling and storage.


DK Series Portable oil purifier is widely applied in filtration of various industrial oil, such as insulating oil, transformer oil, lubricating oil, hydraulic oil, turbine oil, mechanical oil, compressor oil, cooking oil, fuel oil etc. It mainly remove mechanical impurities and powder particles. DK can do precision filtration and generally equips three-stage filters, also can equip four or five stage filters as requirements. The machine is small size, light weight, stable performance, environmental protection, energy-saving and easy to replace filters. it can be used as oiling machine for long distance and high-lift oiling works, particularly suitable for use in the Field.


System Characteristics:

1. The oil purifier machine includes a motor-driven special gear pump, with low noise, self-absorption ability, smooth operation and so on.
2. High-pressure pipeline with overflow protection device, which can effectively protect the safety of hydraulic systems.
3. The use of thermal relay protection, to prevent motor damage caused by motor overload.
4. Suction port The coarse filter protects the pump and extends the life of the main filter.
5. Fine filter according to the different needs of users, choose a different precision, to achieve the desired results.
6. Oil filter shell with quick opening structure, without any tools will be able to quickly and quickly open the cover, replace the filter. The panel is equipped with a pressure gauge, in the work of a continuous indication of the operation of the system and filter the degree of pollution.



Owing to the mini-elements adopted, the machine has the advantages of compacted structure, light and flexibility, easy to carry about, and lower price. Compared with the other large oil-filtering machines, this machine is more economic on changing oils, suppling oils and removing impurities of machine tools, vehicles,

oil tanks, oil switches, mutual inductors and conduits. DK series portable filtering machines are widely used in workshops, maintenance, electric power plants, oil depots, laboraries and so on. The applied oils are: mechanical oil, hydraulic oil,turbine oil, insulation oil, diesel oil and so on


Technical specification:

Model DK200
Capacity(L/min) 200
Work pressure ≤0.4 (Mpa)
Filter precision ≤1micron
Cleanness ≤6degree (NAS1638)
Power (KW) 4
Power supply 380V,50HZ,3Ph ( or customized)
Head (m) ≥15 meter
Inlet/outlet(mm) 58




L 950
W 810
H 1100
Weight(kg) 300
