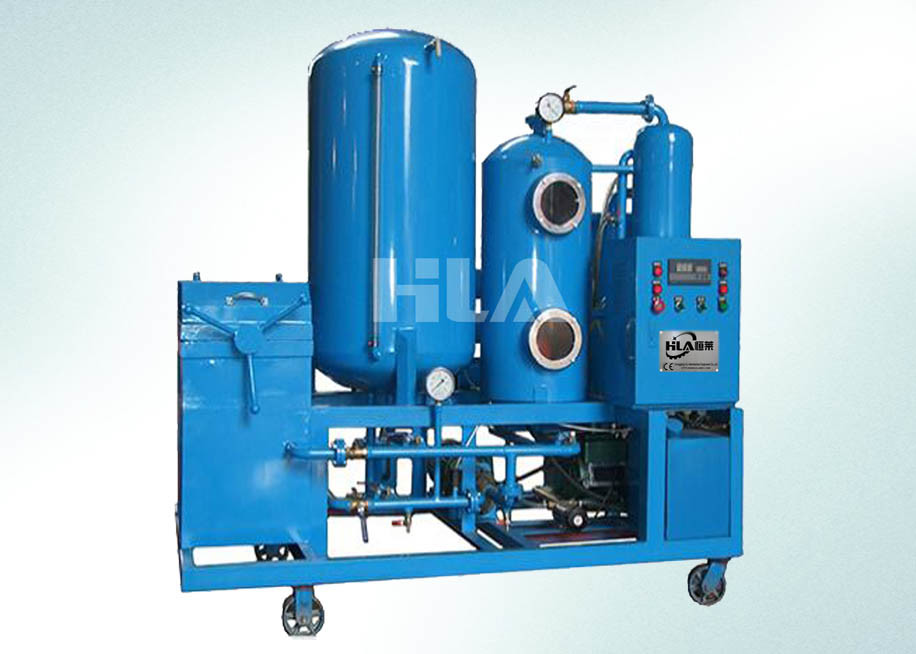

Mobile High Precision Cooking Oil Purifier Machine For Vegetable Oil Palm Oil

Mobile High Precision Cooking Oil Purifier Machine For Vegetable Oil Palm Oil

Mobile High Precision Cooking Oil Purifier Machine For Vegetable Oil Palm Oil
Mobile High Precision Cooking Oil Purifier Machine For Vegetable Oil Palm Oil
Mobile High Precision Cooking Oil Purifier Machine For Vegetable Oil Palm Oil
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DSF300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 18000L/hour Filtering Precision: ≤1 Micron
Water Content: ≤10ppm Gas Content: ≤0.1%
Oil Tester: Equipped For On Line Work Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Operation Mode: Automatilc & Manual
Works Atmosphere Temperature: 10 To 50℃ Power Supply: By Customized
High Light:

cooking oil purification machine

,

cooking oil filtering equipment

,

Mobile cooking oil purifier machine

Mobile High Precision Cooking Oil Purifier Machine For Vegetable Oil Palm Oil



Application:

Filtering cooking oil has many benefits, from extending the life of the oil to increasing the food quality. Our DSF cooking oil purifier can greatly increase the usable life of your cooking oil by removing water, impurities, odor, acidity, color etc, instead of simply replacing the oil. This system will give you more use out of your restaurant's cooking oil. It is safer for employees, it lasts longer, and it removes the unsightly waste that normally comes with frying oil.



DSF cooking oil purifier can save you up to 50% on your oil purchasing, reduce your storage needs, reduce your oil disposal needs, increase the taste and quality of your foods and provide your customers healthier deep fried foods.



This DSF machine can be made by full stainless steel,it is profession vegetable oil purifier machine,It can separate the water and impurities.Adopt high precision and stainless steel FH rectangle filtration system that import from Japan.



Features:

1. Advance vacuum dehydration system, pressure filters, oil water separator and high precision filters. The water content less than 5 ppm and filtering precision less than 1 micron

2. Stainless steel coarse filters, anti-corrosion and anti-corrupt. large capacity of holding particles, good mechanical performance, long lifetime.

1) The primary filter of stainless steel is anti-rust and anti-corrupt. It mainly removes the residual impurities which escape from the press filter, making sure the treated oil won't have any impurity when it goes into the water separator and vacuum separator.

2) The water separator mainly removes mass water from oil. After the water separator, the oil just contains the tiny water and soluble water.

3) After water separator, oil goes into the vacuum separator which adopts three-dimensional duplex evaporation and film evaporation. The tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.
4) Stainless steel fine filter, the purification hole is less than 1 Micro, which can make sure the filtered oil is completely clear.

3. Heating system safety interlock protection control, avoiding heater dry.Adjustable temperature range of 0-100℃, the heater control in multiple groups

4. Using the most advanced atomizing separation technology, oil atomization ≤ 50um, multiple opportunities to enhance the gas molecules and water molecules exposed to the vacuum system and extends the flowing distance in the vacuum system to ensure water and gas vaporized sufficient time to complete removal of moisture and gas

5. Oil level control, pressure control, voltage protection, phase sequence protection etc. adopts automatic control, the full realization of unmanned control.

6. Heating system adopts low-load design to ensure uniform heating oil, the load is less than 1.0W/cm2, avoiding cracking and aging of oil.

7. Advanced vacuum defoaming technology to avoid the oil ejecting and gushing during the process



Technical specification:

Model DSF300
Capacity(L/min) 300
Working vacuum -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 20-80℃
Water content ≤10 ppm
Gas content ≤ 0.1%
Acid Value ≤0.05 mKOH/g
Cleanness NAS 6 grade
Filtering precision ≤1 micron
Continuous work 100 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 160
Total power (kw) 178
Inlet/outlet(mm) 65
Weight (kg) 1350

Dimension

(mm)

L 2000
W 1350
H 2100



Oil index after treated:

Item Guarantee indexes
Moisture content ≤10 PPM
Demulsification value New oil≤15min, running oil≤30min
Impurity size ≤1 micron (no free carbon)
Gas content ≤0.1%
Clean degree ≤6 Grade (NAS1638)



Structure & Appearance

Our products adopt ship-shape chassis-mount structure to ensure oil leak proof and protect the environment from pollution. The whole equipment is characterized by small size. Light weight and convenient to move around. Various sizes and configurations available

Available in mobile or stationary options

Color of machine can follow customer's favor.
