Responsibility is quality assurance,quality is the life of the brand.

|
| Place of Origin: | Chongqing,China |
| Brand Name: | HLA |
| Certification: | CE,ISO9001,ISO14001 |
| Model Number: | VPM100 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Strong wooden cases suitable for long distance ocean freight transportation |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 sets/year |
| Flow Rate: | 6000L/hour | Filtering Precision: | ≤1 Micron |
|---|---|---|---|
| Water Content: | ≤3ppm | Gas Content: | ≤0.1% |
| Temperature Range: | 20-80℃ | Heated Surface: | ≤1.0W/cm2 |
| Working Pressure: | ≤0.4 Mpa | Operation Mode: | Automatilc & Manual |
| Color: | Optional | Power Supply: | By Customized |
| Total Power: | 66kw | Type: | Mobile Waterproof Type |
| Highlight: | mobile transformer oil purifier,mobile oil purification plant,6000L/hour transformer oil purification machine |
||

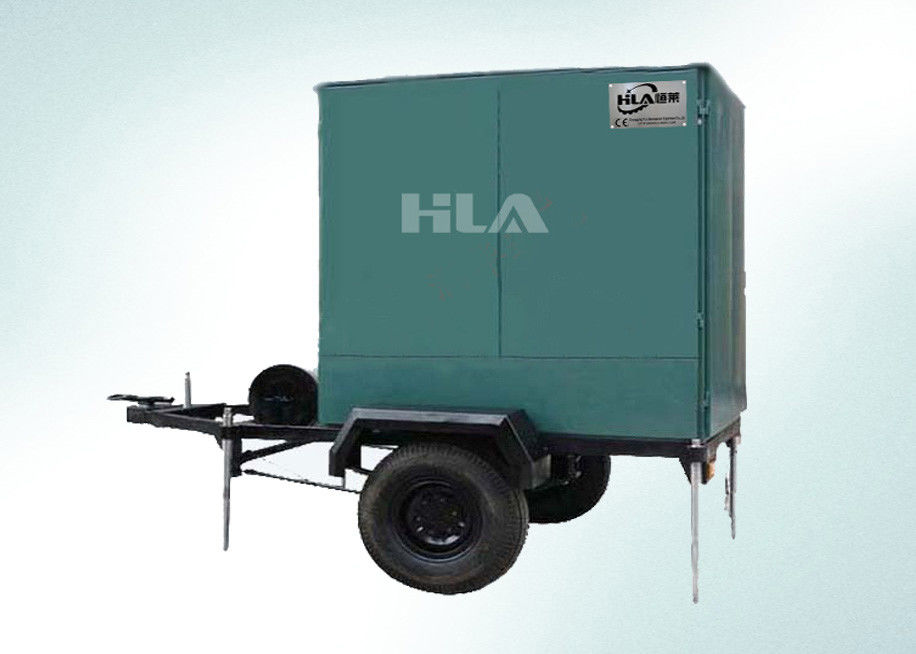

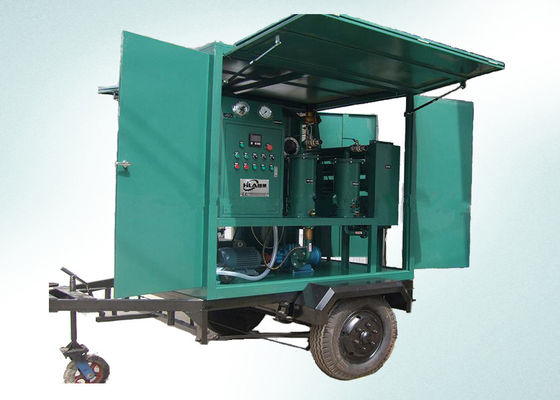

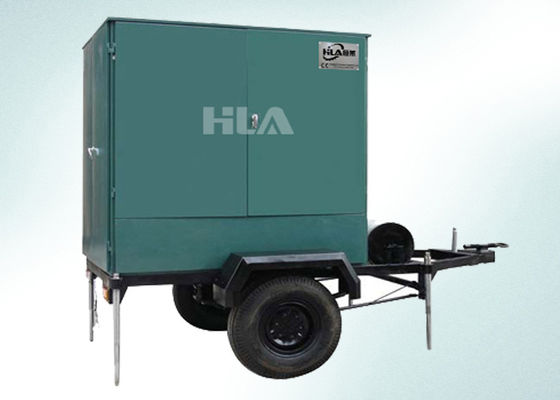

Moveable Transformer Oil Purification Machine 6000 L/hour Flow Rate
Application:
As is well known the Transformer plays an important role in the generation, transmission and distribution of electrical energy. Under load the transformer, dissipates heat and the insulating oil acts as a coolant as well as an effective dielectric.
Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the oil’s quality.
VPM Moveable Vacuum Transformer Oil Purifier is developed for transformer oil degasification, dehydration and filtration processing on site at outside.Being able to remove water and gas fast and effectively under high vacuum and high speed operation status,drying the insulating oil very well, improve the breakdown voltage up to 70 KV quickly. Have a big improvement on the one time purification result,reduce the dangerous of oil aging caused by repeat heating on the ordinary oil purifier
The VPM system not only provides regular oil purification/ reclamation such as degassing, drying and particulate removal, but also can remove acidity, sludge, carbon deposits, sulfur, and other soluble oil decay products and improve physical & chemical properties comparable to new transformer oil.
Features:
▼ Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.
▼ Adoption of American fine filter element, fineness: 5μm, ß≥1000
▼ Low noise and long life of the oil transport system
▼ Adoption of American heating technique with the way of thermal radiation, constant temperature control.
▼ The use of float valve and photoelectric oil level control, eliminates supervision
▼ Adoption of French de-foaming technique to avoid oil leaking
▼ Controlled digitally and automatically by PLC
▼ Major electric apparatus are imported from America, so the controlling system safe and reliable
Technical Parameters:
| Model | VPM-100 | |
| Capacity(L/min) | 100 | |
| Vacuum level | -0.06～-0.099 Mpa | |
| Working pressure | ≤ 0.4 Mpa | |
| Temperature range | 20 ～ 80℃ | |
| Filtering precision | ≤1 micron | |
| Breakdown voltage | ≥ 75KV | |
| Water content | ≤ 3ppm | |
| Gas content | ≤ 0.1% | |
| Filtering particles | ≥ 99.5% | |
| Power supply | 380V, 50HZ, 3PH (or customized ) | |
| Working noise | 65 dB | |
| Heating power (kw) | 60 | |
| Total power (kw) | 66 | |
| Inlet/outlet(mm) | 50 | |
| Purifier Weight (kg) | 900 | |
| Trailer Weight (kg) | 500 | |
|
Purifier Dimension (mm) |
L | 1400 |
| W | 1150 | |
| H | 1750 | |
|
Trailer Dimension (mm) |
L | 2800 |
| W | 1150 | |
| H | 1200 | |
Index Of Purified Oil:
| Breakdown voltage | ≥ 75KV |
| Water content | ≤ 3ppm |
| Gas content | ≤0.1% |
| Filtering particles | ≥99.5% |
| Particles size | ≤ 1 micron |
| Cleanness | ≤ Grade 6 (NAS) |
| Processing by regeneration device as following (Optional device) | |
| Acid value | ≤ 0.03 mgKOH/g |
| Water-solubility | ≥ 5.4 PH |
| Flash point (close cup) | ≥ 135°C |
| Dielectric- factor loss | tgδ (90℃)% ≤ 0.005 |
