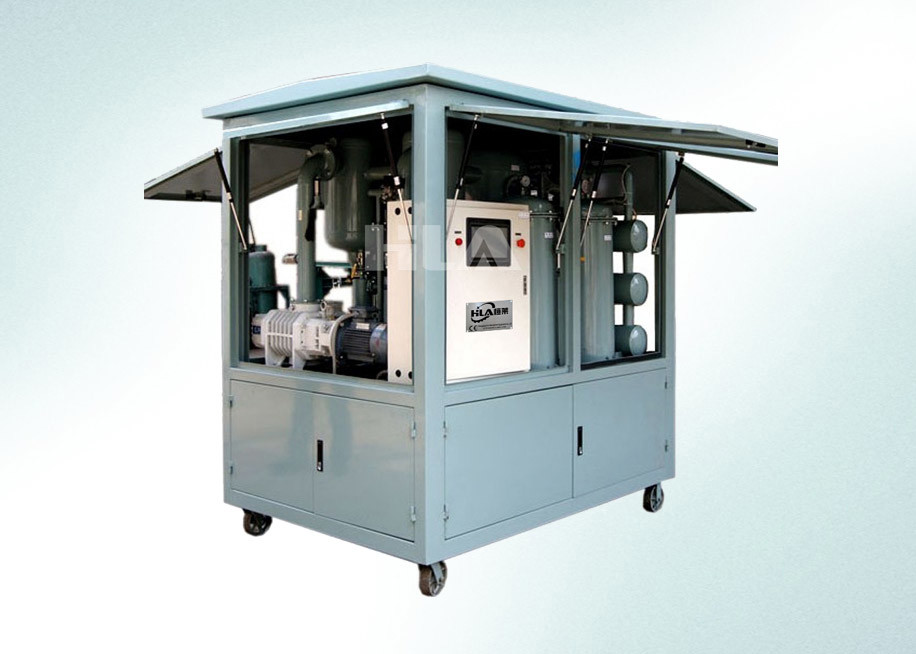

Waterproof Transformer Mobile Oil Purifier With Touch Screen Control Panel

Waterproof Transformer Mobile Oil Purifier With Touch Screen Control Panel

Application:

Ultra-high voltage grid is regarded as “electric high way” which features big capacity .Distance and low loss, Until now ,there are 750KV,1000KV,±660KV,±800KV direct current in our many countries, ulta-high voltage grids considering its safety, it has extremely requirement on insulating oil in transformer, mutual inductor and reactor.

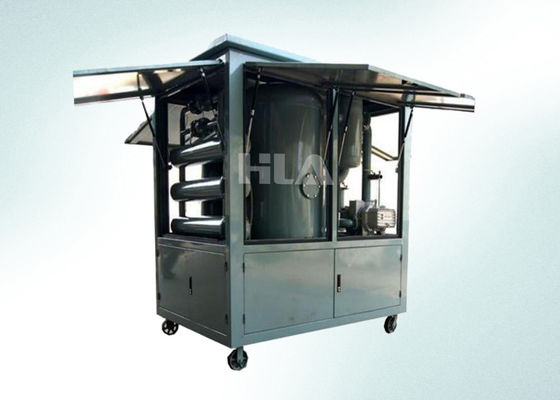

VPM Mobile Transformer Oil Purifier Machine is a double stages vacuum transformer oil purification equipment,The VPM series Ultra-High voltage oil treatment equipment ,manufactured by our company is effective in particles refining ,vacuum degassing and oil-water separation, This equipment has been successfully applied in 750kv alternating current and ±800kv key projects, and every oil treatment index reaches the national ultra-high voltage oil purification standard

The VPM oil purifier machine not only provides regular oil filtration works such as degassing, dehydration and particles removal, but also can remove acidity, sludge, carbon deposits, sulfur, and other soluble oil decay products, increase the oil’s dielectric strength value (BDV value) so as to improve the physical & chemical properties comparable to new transformer oil.

The whole operation is fully automatically controlled by PLC System equipped with famous brand touch screen, all procedure are proceed by touch screen, easy and simple.

Features:

■ Fully automatic temperature controlling system and multi-stages electric oil heater adopts low-load design to ensure uniform heating oil, the load is less than 1.0W/cm2, oil level and temperature protection of heater, which avoid cracking and aging of oil.

■ Automatic defoaming system with dual electronic monitoring system, which avoid the foam ejecting and gushing to vacuum pump.

■ Advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures the long-term safe and reliable operation of the equipment.

■ Horizontal double vacuum separation technology, doubling the evaporation area and degassing time

■ Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa

■ Multi-stage precise filtration system with gradually increasing precision, which can effectively remove mechanical impurities from oil.

■ Advanced cooling system of vacuum pump, it reduces the frequency of oil’s replacement and extends the life of vacuum pump.

■ Online oil treatment, vacuum drying and vacuum oil-filling for electric equipments.

■ Being able to remove water and gas fast and effectively under high vacuum and high speed operation status,drying the insulating oil very well, improve the breakdown voltage up to 70 KV quickly. Have a big improvement on the one time purification result,reduce the dangerous of oil aging caused by repeat heating on the ordinary oil purifier.

Technical Parameters:

Index Of Purified Oil:

Advantage:

■ To remove free, soluble water, carbon, free and dissolved gases and particulate matters, dust from insulating oil effectively and rapidly.
■ With Vacuum pump and Roots pump.
■ Enhance the value of breakdown voltage greatly.
■ Easy handling and maintenance.
■ Inject oil into the transformers.
■ Lower maintenance and replacement expenses.
■ Automatic reverse-washing system will extend the lifetime of filters and improve the performance of the filters.
■ High performance security system including pressure protection device and automatic temperature controller makes purifier operate safely.
■ Utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
