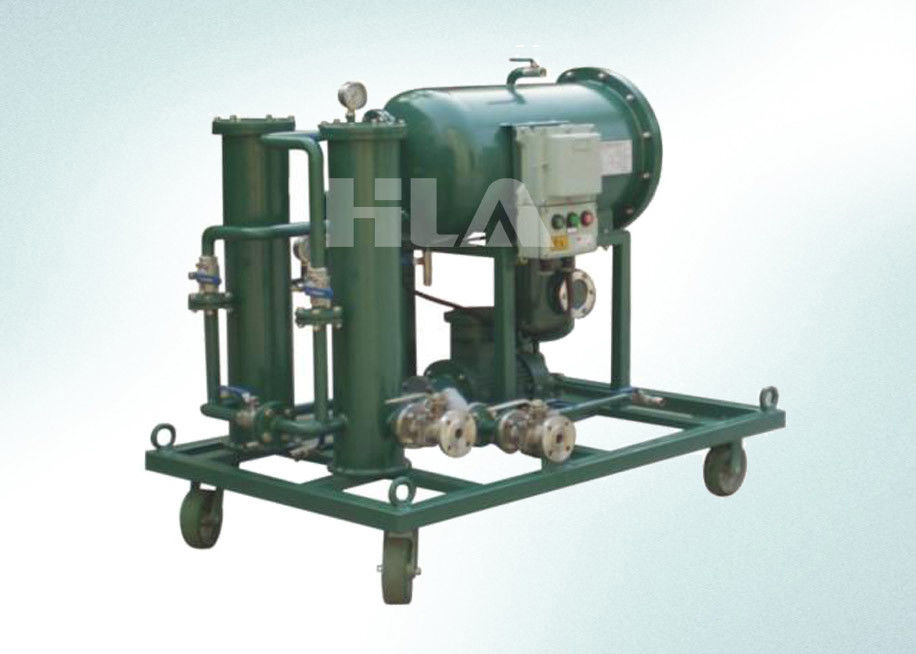

Low Noise Light Oil Fuel Oil Filtration System Removes Impurities Water

Low Noise Light Oil Fuel Oil Filtration System Removes Impurities Water

  • Low Noise Light Oil Fuel Oil Filtration System Removes Impurities Water
Low Noise Light Oil Fuel Oil Filtration System Removes Impurities Water
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DSP20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C,Western Union
Supply Ability: 500sets/year
Contact Now
Detailed Product Description
Flow Rate: 1200L/hour Filtering Precision: ≤1 Micron
Water Content: ≤100ppm Working Pressure: ≤ 0.4 Mpa
Function: Removes Impurities&water Total Power: 1kw
Power Supply: By Customized Color: Optional
High Light:

fuel oil filtration system

,

fuel oil purifier system

,

used oil water oil separator purifier

Low Noise Light Oil Fuel Oil Filtration System Removes Impurities Water



Application:

DSP Coalescence-separation oil purifier is designed to remove free water and dissolved water from lube oils or diesel fuel,coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the water drop by gravity, falling into the water tank. DSP Series Coalescence-separation oil purifier which can remove large of water without heating, creates the fastest dehydration speed in domestic at present. This machine can quickly separate water and particles from the oil. It is especially for purifying light oil including diesel oil, gasoline as well as light lubricating oil.It removes the particles by stages of filters and cleanness up to NAS grade 6. It is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems, especially good for water- leakage systems.



DSP description:

DSP Series Used Oil Water Oil Separator purifier is made of a hydrophilic coalescing element and a hydrophobic dehydration element which are configured and optimized in a certain proportion. According to the different physical effects of the water in the oil, the free water drops with big diameters when passing the coalescing element. The dehydration element will then separate the water drops, which will be automatically drained out after sinking in the water holder. The oil and water will thus be separated. Combining automatic emulsion splitting, high-efficiency dehydration and precise filtering, the filter can effectively filter out the water and impurities in the oil. The product is suitable for the online automatic operation of various light oil system, turbine oil systems and lubricating systems. It has obvious effects on the online operation of leakage sets.



Features:

◆ Rapidly removing large amount free & emulsified water from Oil and water content reach 100 PPM.

◆ The coalesced oil takes the least restricted path to exit and rises or floats through the media to the top of the bulk liquid surface.

◆ The working conditions of all the parts are displayed clearly, monitoring, alarming, action control and safety stop enable the oil filtration machine to run online.

◆ Multilayer filtration can remove the impurities through coarse filter, protecting filter, and fine filer.

◆ Adopt special oil water separator which requires no heating offering more than 20 times dewatering efficiency over other types of purifiers.
◆ As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.
◆ Easy-to-operate, water can be discharged online automatically without the presence of duty operators.The whole equipment designed individually with nice appearance,low power and low cost for operation.

◆ The oil-water interfacial apparatus and automatic drained valve could offer exactly detached water level and drain water automatic when it accumulated condign capacity.
◆ Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press

◆ Electric system control with PLC (touch screen) which could show working condition and operation of all parts clearly. It also can monitor equipments,automatic control and protect stopping machine. It could use of the equipment operation online without human.
◆ Adopting the special oil pump made in Germany that have good airproof,low noise and long life time.



Technical Specification

Model DSP20
Capacity(L/min) 20
Working pressure ≤ 0.4 Mpa
Filtering precision ≤1 micron
Water content ≤100 ppm
Cleanness level NAS 6 grade
Continuous work ≥200 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Total power (kw) 1
Inlet/outlet(mm) 32
Weight (kg) 350

Dimension

(mm)

L 1300
W 800
H 1500



Pre-Sales Service:

◆ Inquiry and consulting support.

◆ Sample testing support.

◆ View our Factory.



After-Sales Service:

◆ Training how to install the machine, training how to use the machine.

◆ Engineers available to service machinery overseas.
