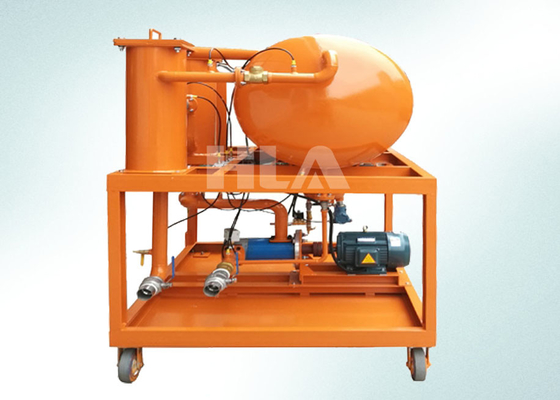

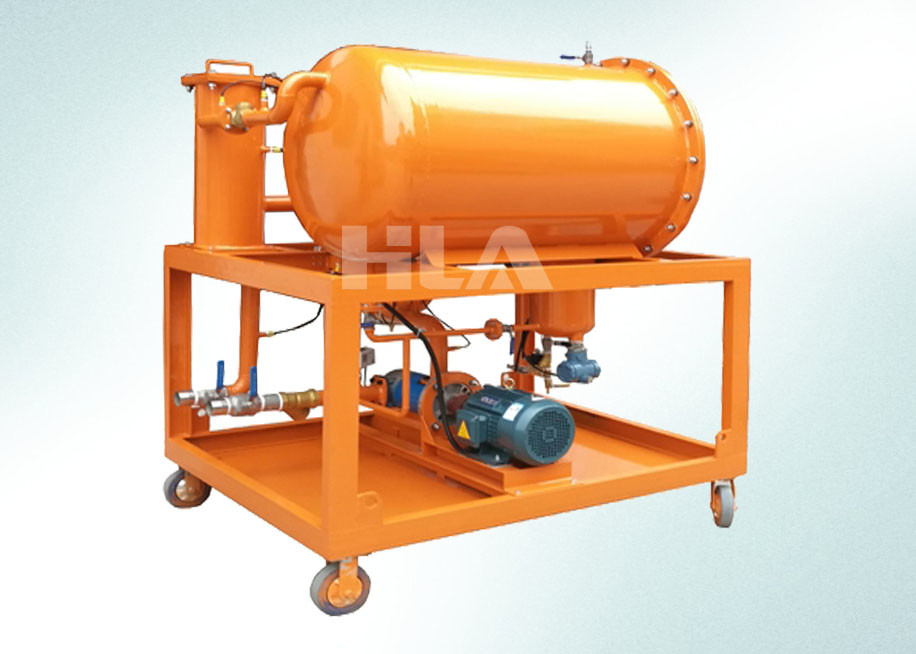

Fuel Oil Hydraulic Oil Filtration Equipment Oil Water Separation 600 L/hour

Fuel Oil Hydraulic Oil Filtration Equipment Oil Water Separation 600 L/hour

    • Fuel Oil Hydraulic Oil Filtration Equipment Oil Water Separation 600 L/hour
    • Fuel Oil Hydraulic Oil Filtration Equipment Oil Water Separation 600 L/hour
  • Fuel Oil Hydraulic Oil Filtration Equipment Oil Water Separation 600 L/hour

    Product Details:

    Place of Origin: Chongqing,China
    Brand Name: HLA
    Certification: CE,ISO9001,ISO14001,BV
    Model Number: DSP10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden case suitable for sea transportation and air transportation
    Delivery Time: 10 days
    Payment Terms: T/T, L/C,Western Union
    Supply Ability: 500sets/year
    Contact Now
    Detailed Product Description
    Flow Rate: 600L/hour Filtering Precision: ≤1 Micron
    Water Content: ≤100ppm Working Pressure: ≤ 0.4 Mpa
    Cleanness Level: ≤ NAS 6 Grade Usage: Oil Water Separation
    Power Supply: By Customized Color: Optional
    High Light:

    fuel oil purification system

    ,

    fuel oil purifier system

    Fuel Oil Hydraulic Oil Filtration Equipment Oil Water Separation 600 L/hour



    Application:

    DSP Coalescence-separation oil purifier is designed to remove free water and dissolved water from lube oils or diesel fuel,coalescing filter will make the free and dissolved water from small molecule to big drop, then separation filter remove the water drop by gravity, falling into the water tank. DSP Series Coalescence-separation oil purifier which can remove large of water without heating, creates the fastest dehydration speed in domestic at present. This machine can quickly separate water and particles from the oil. It is especially for purifying light oil including diesel oil, gasoline as well as light lubricating oil.It removes the particles by stages of filters and cleanness up to NAS grade 6. It is applicable for on line running with light oil filled, turbine oil filled and lubricating oil filled systems, especially good for water- leakage systems.



    DSP advantage:

    Hydraulic lubrication system in the presence of water causes oil oxidation, oil deterioration, reducing the film thickness, lower lubricity, causing degeneration of polymerization to form oil molecules, so that changes in oil viscosity, the formation of organic acids, and thus corrosion metal surface, reduction or loss of oil dielectric strength. For the traditional filtration and separation equipment, from a liquid mixed with each other to separate another liquid is particularly difficult, the company developed the coalescence separate set of sophisticated filters and oil filter as one college dehydration, which can effectively remove impurities and particles in the oil emulsified water, free water, without compromising product quality element. Containing large amounts of water for the oil, the separation effect is particularly significant, the separation rate is a traditional speed several times to several times.



    Features:

    ◆ Rapidly removing large amount free & emulsified water from Oil and water content reach 100 PPM.

    ◆ The coalesced oil takes the least restricted path to exit and rises or floats through the media to the top of the bulk liquid surface.

    ◆ The working conditions of all the parts are displayed clearly, monitoring, alarming, action control and safety stop enable the oil filtration machine to run online.

    ◆ Multilayer filtration can remove the impurities through coarse filter, protecting filter, and fine filer.

    ◆ Adopt special oil water separator which requires no heating offering more than 20 times dewatering efficiency over other types of purifiers.
    ◆ As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.
    ◆ Easy-to-operate, water can be discharged online automatically without the presence of duty operators.
    ◆ Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press



    Technical Specification

    Model DSP10
    Capacity(L/min) 10
    Working pressure ≤ 0.4 Mpa
    Filtering precision ≤1 micron
    Water content ≤100 ppm
    Cleanness level NAS 6 grade
    Continuous work ≥200 hr
    No failure running ≥5000 hr
    Power supply 380V, 50HZ, 3PH ( or Customized )
    Working noise 65 dB
    Total power (kw) 1
    Inlet/outlet(mm) 32
    Weight (kg) 300

    Dimension

    (mm)

    L 1200
    W 750
    H 1400



    Our Services:

    Since the foundation of our company, we have been devoting our efforts to developing better purifiers for energy saving. With the intellectual support form our first-rate oil purification experts and encouraged by the company's modern management mechanism, we have developed twelve series of products, including hundreds of oil purifier models,such as transformer oil purifier,lube oil purifier,turbine oil purifier,cooking oil purifier,diesel oil purifier,engine oil recycling,motor oil purification,fuel oil purifier,centrifugal oil purifier,heavy oil water separator,hydraulic oil purifier etc.



    Our equipment can be applied to many fields, such as electric power, petroleum chemical, metallurgical industry, mining, aviation, shipping railway and so on.
