High Voltage Transformers Vacuum Pump Unit Stationary Or Movable Type

High Voltage Transformers Vacuum Pump Unit Stationary Or Movable Type

  • High Voltage Transformers Vacuum Pump Unit Stationary Or Movable Type
High Voltage Transformers Vacuum Pump Unit Stationary Or Movable Type
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO14001,ISO9001,BV
Model Number: DYK30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 30L/s Ultimate Vacuum: 5 Pa
Operation Mode: Automatilc Guaranty: 24months
Power Supply: By Customized Color: Optional
Type: Stationary & Movable For Optional Structure: Vacuum Pumping
High Light:

vacuum pump system


portable vacuum pump unit

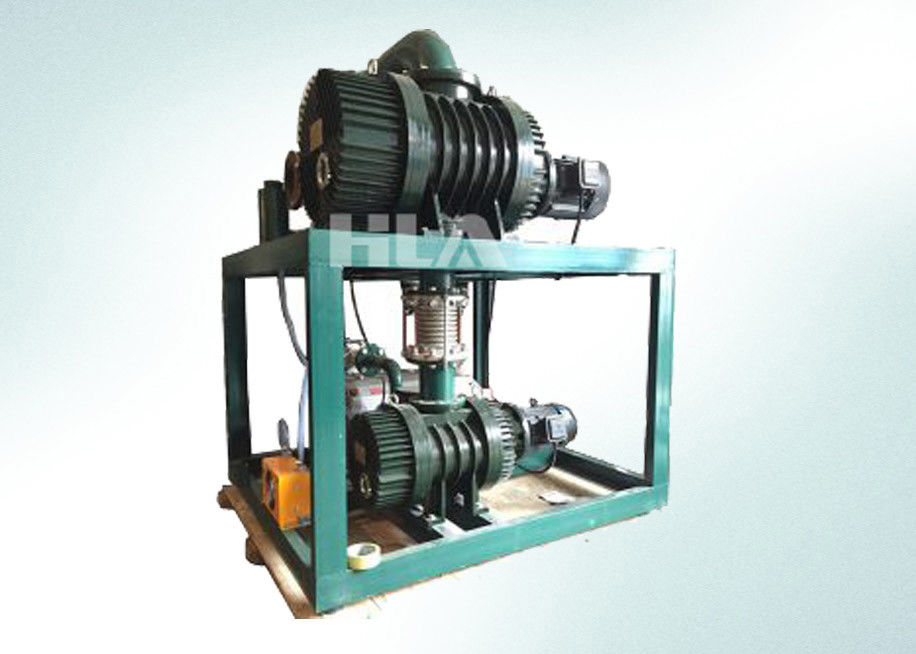

High Voltage Transformers Vacuum Pump Unit Stationary Or Movable Type



In case single vacuum pump is not suited for a certain process due to pumping speed or ultimate vacuum. DYK Series vacuum pumps unit consist of roots pump as booster and rotary vane pump as backing pump, the exhaust from the roots pump is connected to the suction side of the backing pump thereby giving advantage of high pumping speed at higher vacuum.


The pumps unit also equips air cooling system,cooling water system, vacuum valves,ventilation valves, compensator, vacuum meter etc, and highly efficient, reliable and consume less power. It also can be designed and mounted on base frames ready for use, or trailer are offered to suit user's requirements. DYK unit is wildly applied in vacuum metallurgy, vacuum drying, welding, chemical, laboratory, power station and other industrial vacuuming, especially for vacuum transformers and other electrical equipment operation.



1) The forward pump adopts the original world's leading vacuum pump imported from Europe, and customers can choose the imported Roots pump or homemade ones according to their purchasing power.The pump can attain high working vacuity at a vey fast pumping speed.

2) Roots pump automatically runs by the start of backing pump with electrical-contact vacuum meter.

3) The powerful rotary vane backing pumps generate the necessary backing pressure so that the diffusion pump can always attain its full pumping speed and an ultimate vacuum

4) The pumping unit has vacuum valve at the inlet and a rough vacuum line (bypass). This makes it particularly efficient for rapid evacuation cycles.

5) The high vacuum pump unit offer outstanding energy savings, high efficient, reliable and low power consumption

6) Equipped with Pipeline filter so as to keep large impurities out of the system, not damaging the vacuum pump.

7) Simple structure and convenient in operation


Technical specification:

Model DYK30
Capacity (L/s) 30
Ultimate vacuum 5 Pa
Stages Single
Pumping speed of backing pump (L/s) 30
Pumping speed of roots pump (L/s)
Power (kw) 2
Power supply 380V 3Ph 50Hz (or Customized )
Weight (kg) 240


Dimension (mm)

L 700
W 500
H 1200



1) Simple structure, easy operation.

2) Fore pump is imported from German; lobe-type pump could be customized as different requirements, no matter homemade or imported device, make sure highly pumping speed and maximum vacuum degree.

3) Equipped filter in pipelines, prevents vacuum pumps from damages by dirt.


Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Our After-sales:



Complete Turnkey Applications

Spare parts

Service And Maintenance Schemes

Technical Support Network
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience.
