NAS 6 Centrifugal Oil Purifier Used Oil Filtering System 4000 L/hour

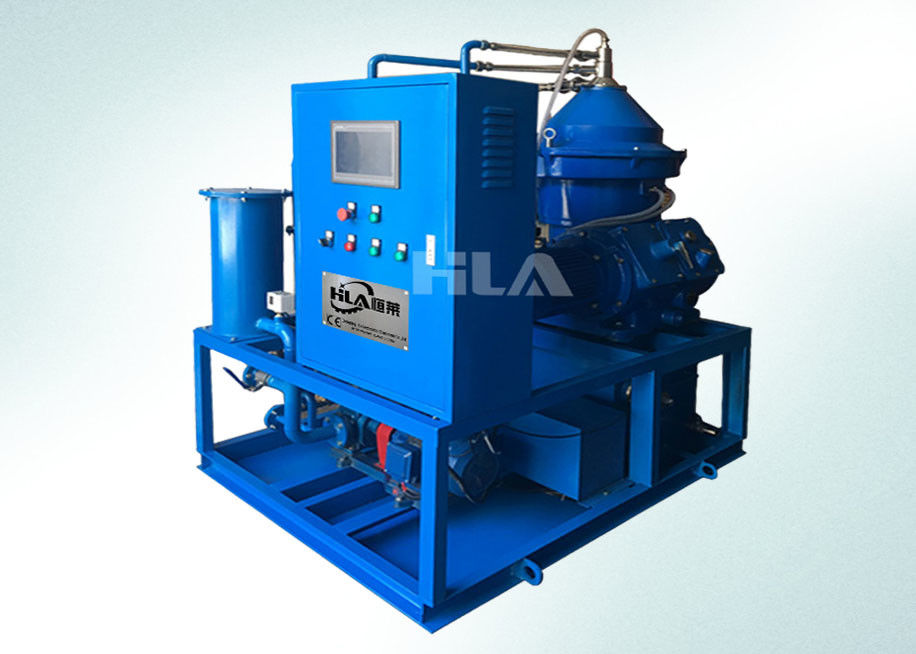

NAS 6 Centrifugal Oil Purifier Used Oil Filtering System 4000 L/hour

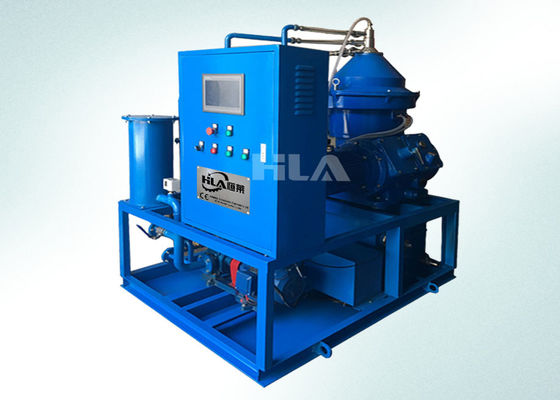

    • NAS 6 Centrifugal Oil Purifier Used Oil Filtering System 4000 L/hour
  • NAS 6 Centrifugal Oil Purifier Used Oil Filtering System 4000 L/hour

    Product Details:

    Place of Origin: Chongqing,China
    Brand Name: HLA
    Certification: ISO9001,CE,ISO14001,BV
    Model Number: HCF-4000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden case suitable for sea transportation and air transportation
    Delivery Time: 10 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 500 sets/year
    Contact Now
    Detailed Product Description
    Flow Rate: 4000L/hour Filtering Precision: ≤2 Micron
    Water Content: ≤50ppm Maximum Viscosity: ≤320cSt
    Sludge-discharge: Manual Or Automatic Outlet Pressure: ≤0.2MPa
    Treatment Method: Physical,no Chemicals Operation Mode: Automatilc & Manual
    Power Supply: By Customized Works Atmosphere Temperature: 10 To 50℃
    High Light:

    centrifugal oil filter machine

    ,

    centrifugal separator machine

    NAS 6 Centrifugal Oil Purifier Used Oil Filtering System 4000 L/hour



    Application:

    The HCF centrifugal filtration is mainly used for remove the free water and impurities from the oil,it can be applied to heavy diesel oil, lubricating oil, transformer oil, hydraulic oil, turbine oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil,also can be applied for some of vegetable oil,plant oil which can’t dissolve in water and the density is lower than water, such as peanut oil,palm oil,sunflower oil,turpentine oil etc.HCF always been apply for mineral oil separator: Remove the water and mechanical impurities for fuel oil, diesel oil, lubricating oil, transformer oil, mineral oil, etc. Also can be used to separate emulsion liquid .



    Description of HCF:

    The disc-type centrifugal separator (Marin Centrifugal Oil Separator) is mainly used for the purification of the heavy fuel oil in the ship, which can effectively remove the water and impurities from the oil, play a role in the clarification and purification, reduce operating costs and extend the life of the engine. Meanwhile, this machine can be applied to heavy diesel oil, lubricating oil, hydraulic oil, turbine oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil. This machine can also be applied to other areas of non-homogeneous suspensions or emulsions separation.



    Disc and the diameter of solid pa Stack Centrifuges is mainly used for liquid-solid separation for the material with solids content between 1% ~10% particles is bigger than 0.5μm. This machine has strong separation capability, and the separation factor is 9250. It can be operated manually,automatically and remotely. It is simple in structure and easy in maintenance.



    The bowl is driven by the motor through the friction clutch and screw gear pair and rotate at high speed around the main shaft.Stock liquid flows from the center charging inlet on the top of separator to the bottom through the charging pipe and then passes through disc seats to the space of the bowl.The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall under the action of the centrifugal force and drained out from the residue under the control of the side bowl,the liquid phase is fully settled down to the center along the discs and drained out by the centripetal pump.



    Features:

    ● Using high-speed disc centrifuge, separation more thoroughly.
    ● Have self-discharging function,automatic trash, continuous and efficient.

    ● High speed centrifugation to separating water and oil grease and sludge impurities

    ● It can quickly separate water and impurity form the oil to ensure the oil quality

    ● Using screw oil pump, lower noise, more stable performance.

    ● Great ability to break emulsification through high polymer materials

    ● PLC programmable controller, enabling unattended,the operation is simple, safe and reliable.
    ● Have integrated protection system (filter blocking alarm, motor overload alarm, power fault phase, protection, over voltage and low voltage protection etc.)



    Working principle:

    Use of different density of the liquid and liquid, liquid and solid turbid liquid in the high-speed rotation of the drum, having a different density multi-component under the effect of centrifugal force into a circular annular shape, the maximum density of the solid particles outward movement accumulate in the drumthe circumferential wall of the light phase liquid in the innermost layer. Drum, disc, drum space is divided into a number of thin-layer separation space, thus greatly reducing sedimentation distance, improve and increase the separation effect. Any particles reaches the disc inner surface at the limit between the two discs can be separated out. Finally, oil discharged out through the light-centripetal-pump,water discharged out by the heavy-centripetal-pump, and the partciles discharged by the particle-pump.



    Parameters:

    Index Unit HCF-4000A(auto type)
    Flow Rate L/H 4000
    Separating factor a/g 9400
    Running speed r/min 8300
    Particles μ 1
    Water content ppm 50
    Maximum viscosity cSt ≤320
    Power Supply   380V, 50HZ, 3PH ( or Customized )
    Motor Power kW 8
    Heater Power kW 36
    Total Power kW 44
    Sludge-discharge   Automatic
    Outlet Pressure MPa ≤0.2
    Weight Kgs 1050
    Dimension mm 1200*900*1200
