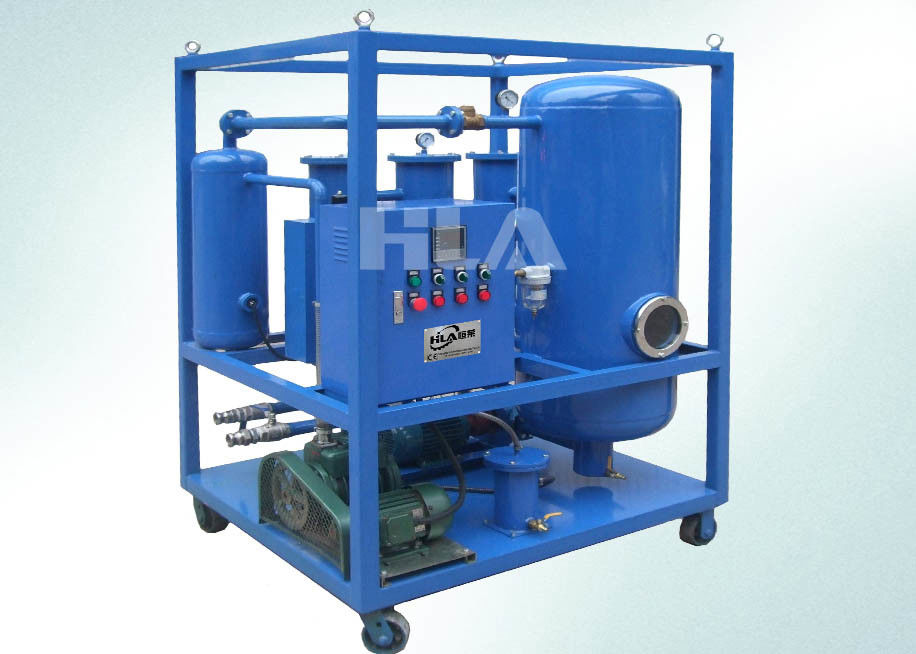

Portable Vacuum Steam Turbine Oil Filtration Machine For Shipbuilding Industrial

Portable Vacuum Steam Turbine Oil Filtration Machine For Shipbuilding Industrial

  • Portable Vacuum Steam Turbine Oil Filtration Machine For Shipbuilding Industrial
Portable Vacuum Steam Turbine Oil Filtration Machine For Shipbuilding Industrial
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: ISO9001,CE,ISO14001,BV
Model Number: TVP20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 1200L/hour Filtering Precision: ≤3 Micron
Water Content: ≤10ppm Gas Content: ≤0.1%
Temperature Range: 0-100℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Operation Mode: Automatilc & Manual
Color: Optional Power Supply: By Customized
Type: Stationary & Movable Function: Removes Impurities,water,gas,acid
High Light:

turbine oil purifier

,

turbine oil purification system

Portable Vacuum Steam Turbine Oil Filtration Machine For Shipbuilding Industrial



Application:

Series TVP vacuum oil purifier is special designed for turbine oil, lubricating oil and cooling oil to removing a large amount of moisture and impurity. Such as power plants, power station steam turbine in the process of running, moisture, dust and impurities will be mixed in the turbine oil, will accelerate the oxidation of oil, and changed with foam, fouling and oil sludge, cause the oil emulsified serious, and lead to oil-water separation more difficult, reduce the oil performance of lubrication, speed, cooling etc. Meanwhile caused the metal parts of turbine steam to corrosion, bad for the safe operation of steam turbine. So TVP series machine is the special maintenance equipment for the power plant, power station to clean the used turbine oil.



Series TVP oil purifier is widely used for filtering turbine lubricating oil in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment.



About the TVP-20:

This is a vacuum type of our TVP20 model lubricant oil purifier machine with high vacuum pump and oil water separator ,it can treat 20L/minute(1200L/hour) lube oil,lubricating oil,hydraulic oil,gear oil,compressor oil, furnace oil,refrigeration oil,vacuum pump oil, bearing oil, metal processing oil, rust-proof oil, oil cylinder oil, heat treatment and heat conduction oil.



Features:

1. Adopts coalescence and separation and Duplex-Stereo film evaporation technology. Unique and advanced dewatering, degassing components. Rapidly and effectively separate water, gases etc.
2. Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable.
3. Precise multi-stage filtration system removes different impurities with high quality filter element of stronger ability of containing pollutants and with long service life.
4. Advanced infrared oil level control system and pressure protection device make operation simple and safe.
5. Can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.
6. Air cooling system helps cool down air and gases from the vacuum vessel so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.
7. Aluminum electric control cabinet has the merits of heat conducting and anti-explosion.
8. Adopts interlocked protective system.
9. High quality and low noise oil pump



Technical specification:

Model TVP-20
Capacity(L/min) 20
Working vacuum -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 0-100℃
Water content ≤10 ppm
Gas content ≤ 0.1%
Demulsifying value ≤15min(GB/F7035)
Cleanness NAS 6 grade
Filtering precision ≤3 micron
Continuous work 100 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 24
Total power (kw) 27
Inlet/outlet(mm) 25
Weight (kg) 350

Dimension

(mm)

L 1250
W 710
H 1300



Available Parts for customer option:

1. Fully closed-type for protecting oil purifier machine (weather proof, vacuum proof, Waterproof, dustproof etc.)

2. Mobile trailer with enclosed type can move long distance working in field.

3. Choosing different vacuum pump, oil pump and electric parts(such as SCHNEIDER, SIEMENS, LEYBOLD,ABB etc.)

4. PLC controller for operation fully-automatically and explosion proof materials

5. On-line Moisture detector, flow meter, viscosity tester, acidity tester etc.
