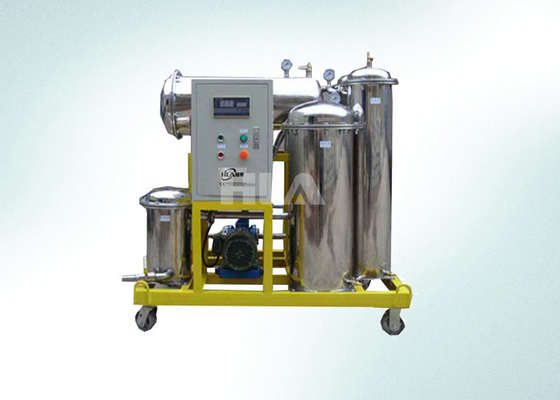

Electric Oil Vacuum Oil Purifier Systems Stationary Movable With Trailer

Electric Oil Vacuum Oil Purifier Systems Stationary Movable With Trailer

Electric Oil Vacuum Oil Purifier Systems Stationary Movable With Trailer

Product Details:

Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: DFR80

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 4800L/hour Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 40-60℃ Working Pressure: ≤0.3 Mpa
Demulsifying Value: ≤15/min(GB/F7035)+ Acid Value: ≤0.05mKOH/g
Resistance Value: ≥6 X 109 Ω Type: Stationary,movable With Trailer
Power Supply: By Customized Color: Optional

Electric Oil Vacuum Oil Purifier Systems Stationary Movable With Trailer



Application:

Series DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil, this oil purifier can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles from oil effectively. This machine’s body is made of acid and dissolving resistant special full stainless steel materials, which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil to achieve new fire-resistant oil properties.



Series DFR is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.



Features:

1. The tank and pipelines of the whole set are all made of stainless steel with features of portability fine appearance and simple operation.

2. The plant has been designed according to the vacuum adsorption theory which can remove the acid and water in the oil effectively.

3. Oil level control adopts the photoelectric way which can control sensitively and accurately. Oil spray will never happen.

4. The fine filter employs the special one for fire-resistant oil (imported from Italy) having a good effect on impurity control (able to reach the NAS 5-6 grade) which can satisfy customers needs perfectly.



Technical Specification:

Model Unit DFR80
Capacity L/H 4800
Working vacuum MPa -0.06~-0.095
Working pressure MPa ≤0.3
Demulsifying value min ≤15/min(GB/F7035)+
Water content ppm ≤5
Gas content % ≤0.1%
Acid value mKOH/g ≤0.05
Resistance value Ω ≥6 x 109 Ω
Filtering accuracy micron ≤1
Cleanness   ≥ NAS 6 grade
Power supply   380V 50HZ(As per user's option)
Working noise dB(A) ≤65~80
Temperature range ºC 40~60
Heating power Kw 25
Total power Kw 30
Weight Kg 550
Dimension L mm 1650
W mm 1250
H mm 1800



Oil index after treated:

Item Guarantee indexes
Moisture content ≤5 PPM
Demulsification value New oil≤15min, running oil≤30min
Impurity size ≤1 micron (no free carbon)
Gas content ≤0.1%
Clean degree ≤6 Grade (NAS1638)



Customer Service:

Installation

Commissioning

Complete Turnkey Applications

Spare parts

Service And Maintenance Schemes

Technical Support Network

Electric Oil Vacuum Oil Purifier Systems Stationary Movable With Trailer
