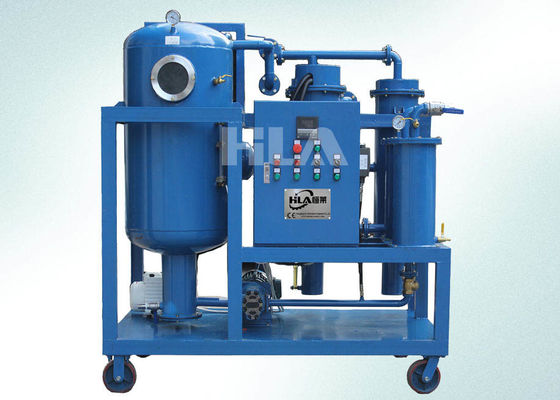

Energy Savings Lubricant Oil Hydraulic Oil Purifier Machine Multi Stage Filtration System

Energy Savings Lubricant Oil Hydraulic Oil Purifier Machine Multi Stage Filtration System

  • Energy Savings Lubricant Oil Hydraulic Oil Purifier Machine Multi Stage Filtration System
Energy Savings Lubricant Oil Hydraulic Oil Purifier Machine Multi Stage Filtration System
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: ISO9001,CE,ISO14001,BV
Model Number: LVP10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 600L/hour Filtering Precision: ≤1 Micron
Water Content: ≤ 10ppm Gas Content: ≤0.1%
Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤ 0.4 Mpa Operation Mode: Automatilc & Manual
Color: Bule,white,yellow Or By Buyer Request Power Supply: By Customized
High Light:

lube oil purification system

,

lube oil purifier system

Energy Savings Lubricant Oil Hydraulic Oil Purifier Machine Multi Stage Filtration System



Application:

LVP-Series Vacuum lubricant oil purifier is specially designed for maintaining absolute cleanliness of hydraulic and lubricant oils, the particulate and moisture contamination in oil will affect the performance and life of mechanical equipment, LVP machine can separate water, gas, particles rapidly and demulsify completely for recovery of oil’s properties, such as viscosity, flash point, performance etc. And so as to greatly extend lifetime of machinery. This oil purifier also can be used for purification of turbine oil, gear oil, engine oil,compressor oil, refrigeration oil and other industrial oils, so it is wildly applied in electric power, metallurgy, mining, chemicals, transportation, manufacturing, petroleum, railway etc. LVP-series lubricant oil purifier is the most reliable, versatile, durable, and user-friendly machine in the industry today.



Feature:

1. Degassing, dehydration and filtration of oil with variable oil flow rate in one or several passes
2. Adopt back washing system which can clear impurities automatically.
3. Double primary filter structure, large capacity for holding particles, multi-stage filtration system to ensure high filtration precision
4. We uses stainless steel filter element which is anti-corrosive with high precision of eliminating impurity and long service life. Also, it has a large volume for holding impurities.
5. Adopts 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gas from the oil quickly by the Multi-level water-oil separation technology.
6. Adopts interlocked protective system.
7. High quality and low noise oil pump.



About LVP10:

This is a vacuum type of our LVP10 model lubricant oil purifier machine with high vacuum pumps,it can treat 10L/minute(600L/hour) lube oil,lubricating oil,hydraulic oil,gear oil,compressor oil, furnace oil,refrigeration oil,vacuum pump oil, bearing oil, metal processing oil, rust-proof oil, oil cylinder oil, heat treatment and

heat conduction oil.



This machine used Europe famous brand Germany Leybold vacuum pump and China famous brand oil pump,we also could supply the Europe famous brand oil pump as customer required. This LVP10 automatic vacuum type lube oil purifier machine mostly suitable for shipbuilding, steel work, bridge, car, machinery, railway, petrochemical, metallurgy,oil refineries, hydraulic station etc.



Technical specification:

Model LVP10
Capacity(L/min) 10
Working vacuum -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Temperature range 20-80℃
Water content ≤10 ppm
Gas content ≤ 0.1%
Demulsifying value ≤8 min(GB/F7035)
Cleanness NAS 6 grade
Filtering precision ≤1 micron
Continuous work 100 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 24
Total power (kw) 27
Inlet/outlet(mm) 25
Weight (kg) 300

Dimension

(mm)

L 1100
W 800
H 1250



Available Parts for customer option:

1. Fully closed-type for protecting oil purifier machine (weather proof, vacuum proof, Waterproof, dustproof etc.)

2. Mobile trailer with enclosed type can move long distance working in field.

3. Choosing different vacuum pump, oil pump and electric parts(such as SCHNEIDER, SIEMENS,LEYBOLD,ABB,EDWARDS,PVR etc.)

4. PLC controller for operation fully-automatically and explosion proof materials

5. On-line Moisture detector, flow meter, viscosity tester, acidity tester tec.
