DK Automatic Controlled Portable Oil Filtering System Stainless Steel

DK Automatic Controlled Portable Oil Filtering System Stainless Steel

    • DK  Automatic Controlled Portable Oil Filtering System Stainless Steel
    • DK  Automatic Controlled Portable Oil Filtering System Stainless Steel
    • DK  Automatic Controlled Portable Oil Filtering System Stainless Steel
    • DK  Automatic Controlled Portable Oil Filtering System Stainless Steel
    • DK  Automatic Controlled Portable Oil Filtering System Stainless Steel
  • DK  Automatic Controlled Portable Oil Filtering System Stainless Steel

    Product Details:

    Place of Origin: Chongqing,China
    Brand Name: HLA
    Certification: ISO9001,CE,ISO14001,BV
    Model Number: DK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden case suitable for sea transportation and air transportation
    Delivery Time: 7 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Condition: Brand New Flow Rate: 20~300L/minute
    Working Pressure: ≤0.4 Mpa Filtering Precision: ≤1 Micron
    Head (m): ≥15 Meter Operation Mode: Automatilc & Manual
    Power Supply: By Customized Color: Optional

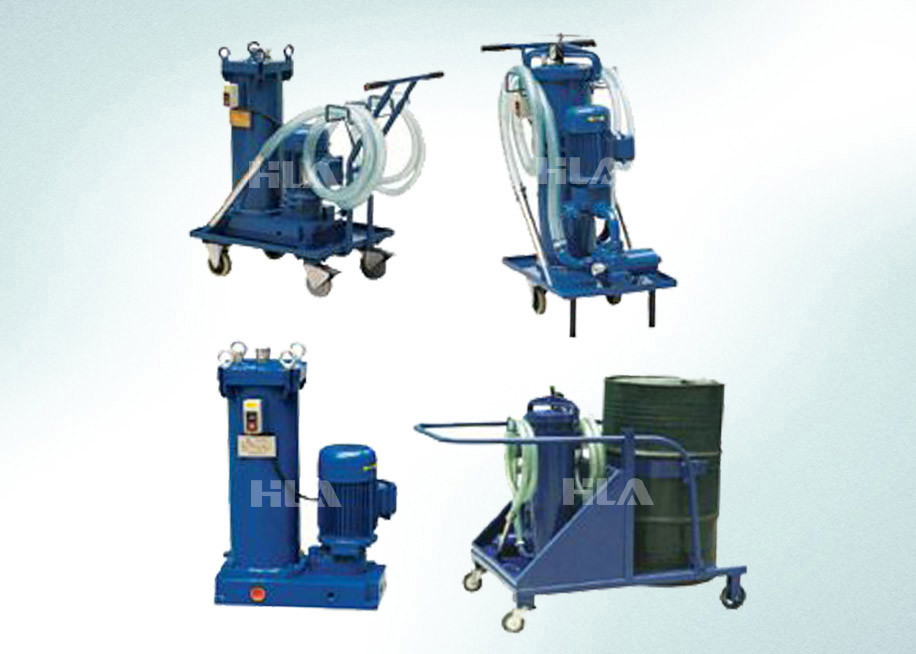

    DK Automatic Controlled Portable Oil Filtering System Stainless Steel



    Application:

    DK-Series Portable oil purifier is widely applied in filtration of various industrial oil, such as insulating oil, transformer oil, lubricating oil, hydraulic oil, turbine oil, mechanical oil, compressor oil, cooking oil, fuel oil etc. It mainly remove mechanical impurities and powder particles.



    DK series oil purifier machine is portable and flexible size, easy to operate, the oil filtration machine mainly used to clean and remove solid impurities, tiny particles from turbine oil, lubricant oil, hydraulic oil, gear oil ,insulating oil and other industrial oil with low viscosity. it also can use in the long-distance and the high-lift oil pumping and oil filling.



    DK can do precision filtration and generally equips three-stage filters, also can equip four or five stage filters as requirements. The machine is small size, light weight, stable performance, environmental protection, energy-saving and easy to replace filters. it can be used as oiling machine for long distance and high-lift oiling works, particularly suitable for use in the Field.



    Advantages:

    1. There are three stainless steel filters element, which imported from Japan, ensure this machine can run safely with high performance and can continuously run about 720 hours.
    2. Environment-friendly and energy-saving, without filtration paper and without pollution
    3.There is a wider usage and longer life-span compare with ordinary pressure oil filtration plant

    4. Different types of DK series oil purifier: such as one stage filtration machine, two stage filtration machine, the machine with flow meter, outdoor usage filtration machine, the machine with oil tanks on it etc. All the machines we can customized according to your own requirements.



    Technical specification:

    Model DK020 DK030 DK050 DK080 DK100 DK125 DK150 DK200 DK300
    Capacity(L/min) 20 30 50 80 100 125 150 200 300
    Work pressure ≤0.4 (Mpa)
    Filter precision ≤1micron
    Cleanness ≤6degree (NAS1638)
    Power (KW) 1.1 1.1 1.5 2.2 3 3 4 4 5.5
    Power supply 380V,50HZ,3Ph ( or customized)
    Head (m) ≥15 meter
    Inlet/outlet(mm) 20 25 32 38 44 48 50 58 65



    Dimension

    (mm)

    L 600 800 800 800 800 810 950 950 1000
    W 600 750 760 800 800 800 800 810 850
    H 900 950 980 1000 1000 1000 1000 1100 1150
    Weight(kg) 100 130 160 195 220 240 250 300 330





    Our Main Series Products as following:
    DVP-Double vacuum Transformer oil purifier
    VPM-Movable insulating oil purification cart
    DYK-Electric transformer air drying equipments
    TVP-Online Turbine oil treatment
    DSP-Fuel oil filtration unit
    LVP-Lubricating oil purifier/hydraulic oil purification
    AP-oil regeneration system, waste oil recycling
    PR-Press paper filter machine
    DK-Portable oil piurifier,oil filtering,oil filter
    ZJY dielectric strength tester for transformer oil
    EE36-Oil moisture sensor
    Oil purifier parts and various oil testing equipments

    Our Honor and Quality Certificate:
    China Famous brand Oil Purifier Company
    Golden-supplier for China National Electric power Group
    Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
    ISO9001 products quality certificate
    CE Products safety certificate
    SGS Products local testing report
    More than 10 years and 50 countries and districts exporting experience

    Our After-sales:
    Engineer is available for local installation.
    Long time warranty from the delivery time.
    24 hours online service question and answer.
    More than 10 years experience
