LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil

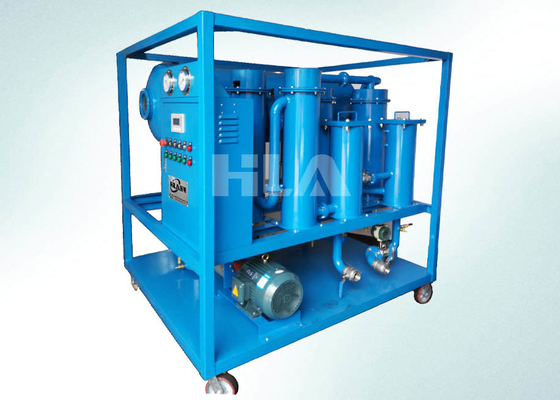

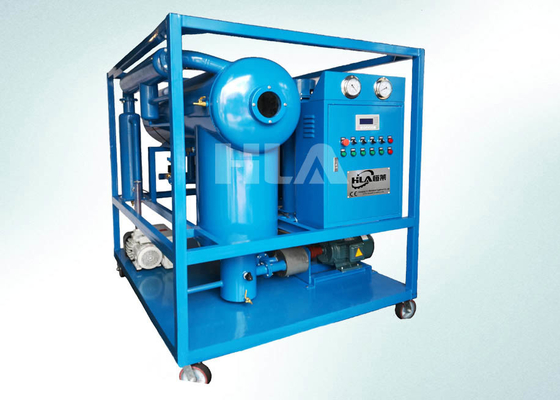

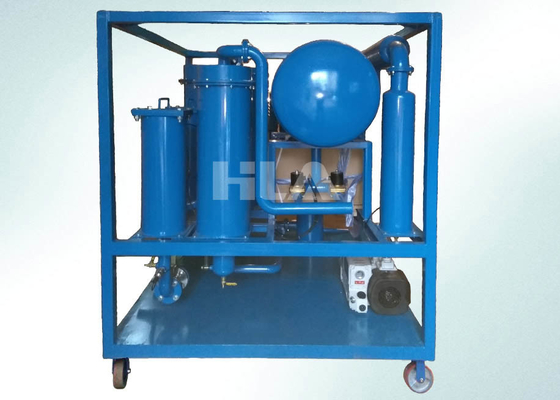

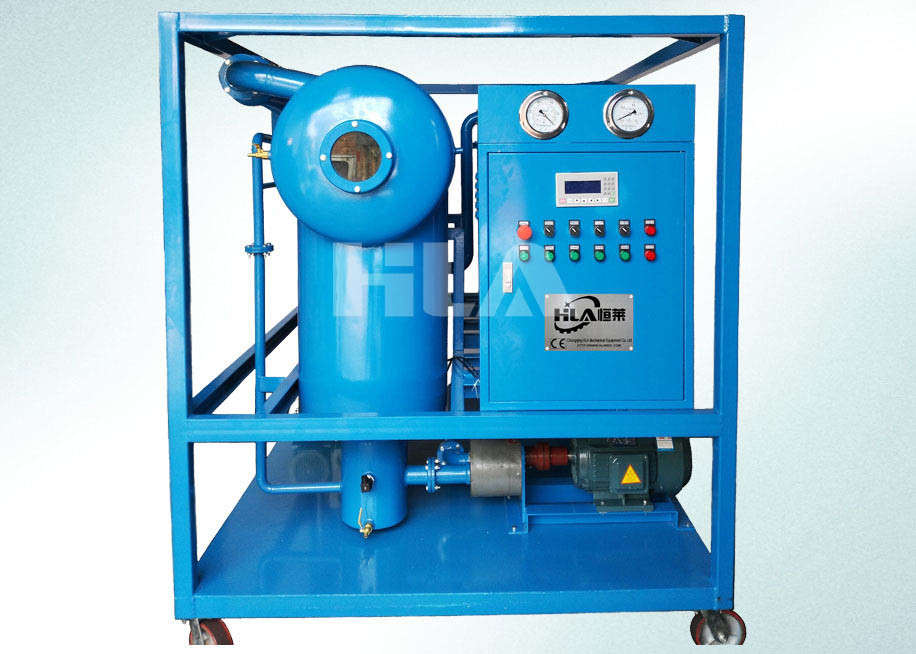

LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil

    • LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil
    • LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil
    • LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil
    • LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil
  • LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil

    Product Details:

    Place of Origin: Chongqing,China
    Brand Name: HLA
    Certification: ISO9001,CE,ISO14001,BV
    Model Number: LVP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden case suitable for sea transportation and air transportation
    Delivery Time: 10 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 500 sets/year
    Contact Now
    Detailed Product Description
    Flow Rate: 10~300L/minute Filtering Precision: ≤1 Micron
    Water Content: ≤ 10ppm Gas Content: ≤0.1%
    Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
    Working Pressure: ≤ 0.4 Mpa Operation Mode: Automatilc & Manual
    Color: Optional Power Supply: By Customized

    LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant



    Application:

    LVP-Series Vacuum lubricant oil purifier is specially designed for maintaining absolute cleanliness of hydraulic and lubricant oils, the particulate and moisture contamination in oil will affect the performance and life of mechanical equipment, LVP machine can separate water, gas, particles rapidly and demulsify completely for recovery of oil’s properties, such as viscosity, flash point, performance etc. And so as to greatly extend lifetime of machinery. This oil purifier also can be used for purification of turbine oil, gear oil, engine oil,compressor oil, refrigeration oil and other industrial oils, so it is wildly applied in electric power, metallurgy, mining, chemicals, transportation, manufacturing, petroleum, railway etc. LVP-series lubricant oil purifier is the most reliable, versatile, durable, and user-friendly machine in the industry today.



    Feature:

    ◆ Unique and high capacity dehydration, degasification and demulsifying system, which adopts stereo-evaporating technology, enabling fast removal of large water, gas and volatile matter (such as alcohol, gasoline, ammonia, etc.)

    ◆ Multi-stages high precision filters, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime and easy to replace and clean.

    ◆ Special polymer materials as filter element with the functions of broken emulsion, dewatering, removing particles. 99.5% of particles over 1.0 micron are removed.

    ◆ An advanced fully automatic temperature controlling system,efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

    ◆ Fully Automatic liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.

    ◆ Advanced medium cooling system

    ◆ Interlocked protective system connects oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. fault alarm, power off automatically.



    Technical specification:

    Model LVP010 LVP020 LVP030 LVP050 LVP100 LVP150 LVP200 LVP300
    Capacity(L/min) 10 20 30 50 100 150 200 300
    Working vacuum -0.06~-0.095 Mpa
    Working pressure ≤ 0.4 Mpa
    Temperature range 20-80℃
    Water content ≤10 ppm
    Gas content ≤ 0.1%
    Demulsifying value ≤8 min(GB/F7035)
    Cleanness NAS 6 grade
    Filtering precision ≤1 micron
    Continuous work 100 hr
    No failure running ≥5000 hr
    Power supply 380V, 50HZ, 3PH ( or Customized )
    Working noise 65 dB
    Heating power (kw) 24 24 30 40 60 90 145 160
    Total power (kw) 27 27 33.5 44 65 97 157 178
    Inlet/outlet(mm) 25 25 32 32 48 50 58 65
    Weight (kg) 300 350 400 500 800 1000 1200 1350

    Dimension

    (mm)

    L 1100 1230 1250 1500 1650 1750 1900 2000
    W 800 810 850 950 1000 1200 1250 1350
    H 1250 1260 1300 1400 1600 1750 1950 2100



    Machine work on side:

    LVP Automatic Multistage Lube Oil Purifier System For Filtering Dehydration Lubricant Oil
