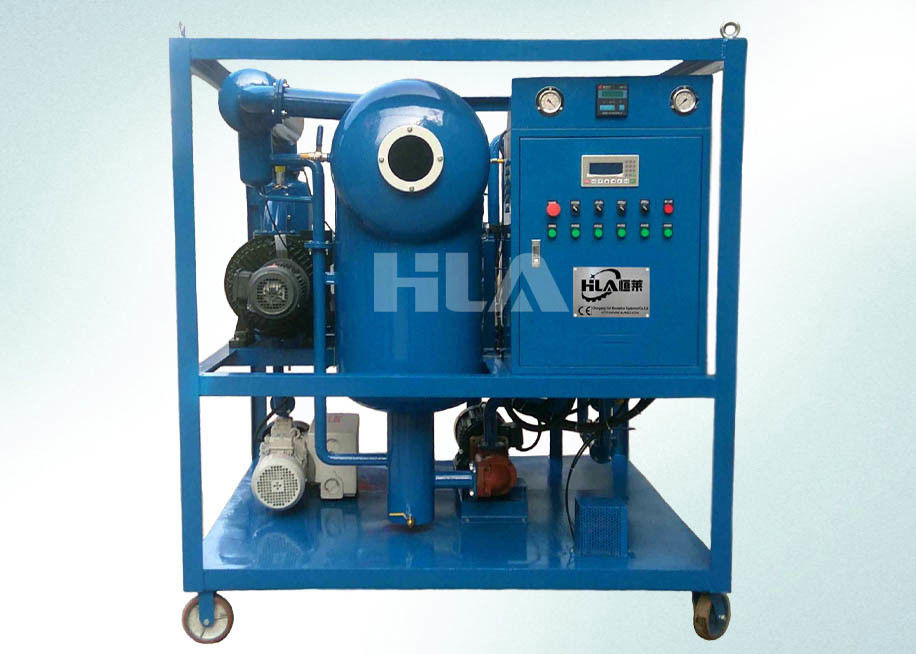

High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work

High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work

    • High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work
    • High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work
    • High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work
    • High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work
  • High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work

    Product Details:

    Place of Origin: Chongqing,China
    Brand Name: HLA
    Certification: CE,ISO9001,SGS,ISO14001
    Model Number: DVP30-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden case suitable for sea transportation and air transportation
    Delivery Time: 10 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 500 sets/year
    Contact Now
    Detailed Product Description
    Condition: Brand New Flow Rate: 30~300L/minute
    Water Content: ≤3ppm Gas Content: ≤0.1%
    Filtering Precision: ≤1 Micron Heated Surface: ≤1.0W/cm2
    Working Pressure: ≤0.4 Mpa Temperature Range: 20-80℃
    Color: Optional Power Supply: By Customized

    High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work



    Why purify transformer oil?
    Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer. Likewise, water contamination at levels as low as 30 ppm (parts per million) can adversely affect the insulating strength of the oil. With ever-increasing standards for energy efficiency of power distribution transformers, the need to effectively degas will become even more important in the future. particles contamination will also affect the function of insulating oil. So we need to clean used transformer oil.



    Application:

    DVP series double stages vacuum transformer oil purifier is special designed for processing insulating oil of high voltage electric equipments(especially for more than 500KV UHV insulating oil) in workshops or the field, storage tanks or drums, it adopts double stages vacuum source, double stages vacuum dehydration and degasification vessels, three stages precise filtration system, which can separate moisture, gas, particles and other harmful ingredients from oil much quickly and effectively to ensure the dry-level and dielectric strength improving greatly.. Meanwhile, DVP machine can be used for online oil treatment for transformers and vacuum drying and oil-pumping for electrical equipment. It is also applied to the above 110KV EHV transmission and distribution equipment, capacitor oil, cable oil, mutual inductor oil etc.



    Features:

    ◆ Horizontal double vacuum separation technology, doubling the evaporation area and degassing time

    ◆ Double stages vacuum source and dehydration, degasification system, vacuum pump with roots pump, high speed vacuum evacuation, ultimate vacuum ≤ 5Pa

    ◆ Multi-stage precise filtration system with gradually increasing precision, which can effectively remove mechanical impurities from oil.

    ◆ Automatic double-infrared liquid level controller, pressure protector, which ensure long-term safely and reliable operation.

    ◆ Fully automatic temperature controlling system and multi-stages electric oil heater adopts low-load design to ensure uniform heating oil, the load is less than 1.0W/cm2, oil level and temperature protection of heater, which avoid cracking and aging of oil.

    ◆ Automatic defoaming system with dual electronic monitoring system, which avoid the foam ejecting and gushing to vacuum pump.

    ◆ Advanced cooling system of vacuum pump, it reduces the frequency of oil’s replacement and extends the life of vacuum pump.

    ◆ Interlocked protective system connects oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

    ◆ Online oil treatment, vacuum drying and vacuum oil-filling for electric equipments.



    Technical Parameters:

    Model DVP30 DVP50 DVP80 DVP100 DVP125 DVP150 DVP200 DVP250 DVP300
    Capacity(L/min) 30 50 80 100 125 150 200 250 300
    Vacuum level -0.06~-0.095 Mpa
    Working pressure ≤ 0.4 Mpa
    Ultimate vacuum ≤ 5 Pa
    Temperature range 20-80℃
    Filtering precision ≤1 micron
    Continuous work ≥200 hr
    No failure running ≥5000 hr
    Power supply 380V, 50HZ, 3PH ( or Customized )
    Working noise 65 dB
    Heating power (kw) 24 30 48 60 72 90 125 136 150
    Total power (kw) 27 34 54 68 80 100 135 148 165
    Inlet/outlet(mm) 32 32 44 44 48 50 55 60 65
    Weight (kg) 300 400 500 600 700 800 1000 1150 1300

    Dimension

    (mm)

    L 1300 1350 1500 1800 1900 2000 2100 2150 2300
    W 1000 1000 1100 1150 1200 1250 1300 1350 1400
    H 1500 1500 1600 2000 2100 2150 2200 2250 2300



    Index Of Purified Oil:

    Breakdown voltage ≥ 75KV
    Water content ≤ 3ppm
    Gas content ≤0.1%
    Filtering particles ≥99.5%
    Particles size ≤ 1 micron
    Cleanness ≤ Grade 6 (NAS)
    Processing by regeneration device as following (Optional device)
    Acid value ≤ 0.03 mgKOH/g
    Water-solubility ≥ 5.4 PH
    Flash point (close cup) ≥ 135°C
    Dielectric- factor loss tgδ (90℃)% ≤ 0.005



    High Voltage Electric Transformer Oil Purifier Machine Horizontal On Line Work
