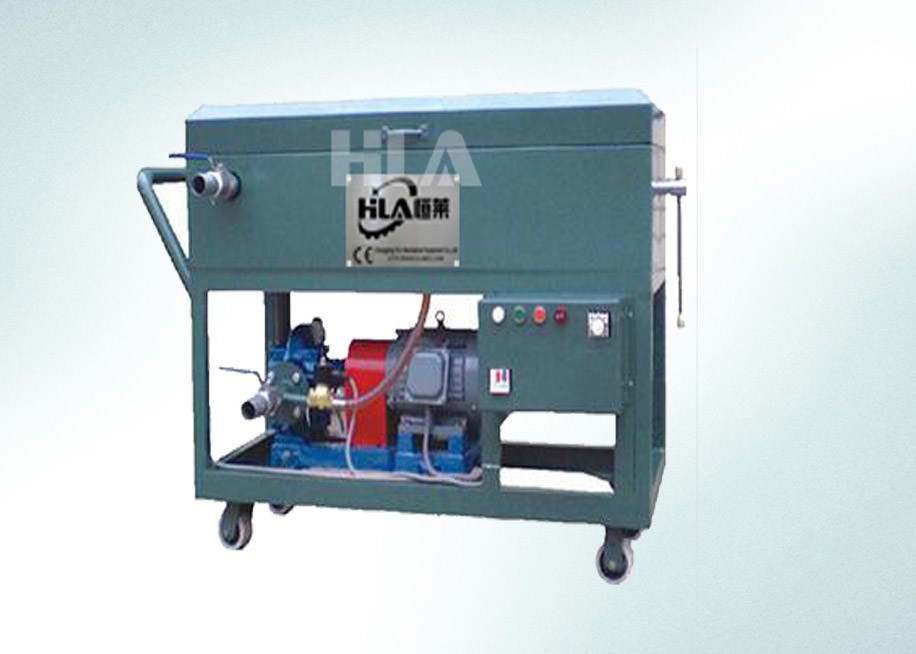

Used Hydraulic Oil Gear Oil Press Plate Oil Purifier / Oil Water Separator Equipment

Used Hydraulic Oil Gear Oil Press Plate Oil Purifier / Oil Water Separator Equipment

  • Used Hydraulic Oil Gear Oil Press Plate Oil Purifier / Oil Water Separator Equipment
Used Hydraulic Oil Gear Oil Press Plate Oil Purifier / Oil Water Separator Equipment
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001,BV
Model Number: PR80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 7 days
Payment Terms: T/T, L/C,Western Union
Supply Ability: 1000 sets/year
Contact Now
Detailed Product Description
Flow Rate: 4800L/hour Filtering Precision: ≤1 Micron
Working Pressure: 0~0.4Mpa Pressure Type: Manual Type
Filtering space: 1.27㎡ Plate Size (mm): 280×280
Power Supply: By Customized Color: Optional
High Light:

plate and frame filter press

,

plate & frame filter press

Used Hydraulic Oil Gear Oil Press Plate Oil Purifier / Oil Water Separator Equipment



Application:

PR Series plate pressure oil purifier is designed for power plants, industrial and mining substations, lubricants warehouse, tractor station, petroleum, chemical, cement, metallurgy etc. It can purify transformer oil, turbine oil, hydraulic oils, gear oils, lubricating oil and remove water, mechanical impurities. PR plate pressure oil purifier is consisted of filter bed, plates, oil pump, motor and filtering papers. The filter bed and plates consist of a filter house, between the plates, the papers as filtering media. It also can purify fuel oil, cooking oil by using special materials and motor. PR-series oil purifier has a simple structure, convenient filter replacement, high filtration precision, easy operation, low cost.



Product Features:
1. Plates and Frame can be equipped with fully S.S.304 material. It can meet the food degree.
2. It can ensure high pressure and temperature, so that could used in more fields, get lowest moisture and most output.
3. Manual model closing is practical and cost saving. Basically zero running cost.
4. Plate & Frame structure designed for easy operation and maintenance.
5. The flatness of the filter plate is lower than 25μm can perfectly avoid leakage.
6. Every plates is tested under high closing pressure 21 MPa.
7. All structure is also can be coated by S.S.304, so that easy to clean and serves longer.
8. Main beam can be made of high quality SS304 with sand blasting processing and it is of high intensity and corrosion resisting.
9. All beams are produced by making use of submerged arc auto welding technology.
10. The filter cloth is pure cotton material, so that non-toxic, odourless.



  Technical specification:

Model PR80
Capacity( L/min) 80
Working pressure (Mpa) 0~0.4
Filtering space (㎡) 1.27
Plate size (mm) 280×280
Filter paper size (mm) 280×280
Filtering precision ≤ 1 micron
Pressure type Manual type
Filter ring quantity 10
Filter plate quantity 11
Motor Power (KW) 2.2
Speed (r/min) 1400
Inlet caliber 1 1/4
Outlet caliber 1 1/4

Dimension (mm)
L 820
W 410
H 850
Weight 250



Our Main Series Products as following:
DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit
LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments

Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience



Filter paper:

Used Hydraulic Oil Gear Oil Press Plate Oil Purifier / Oil Water Separator Equipment 0
