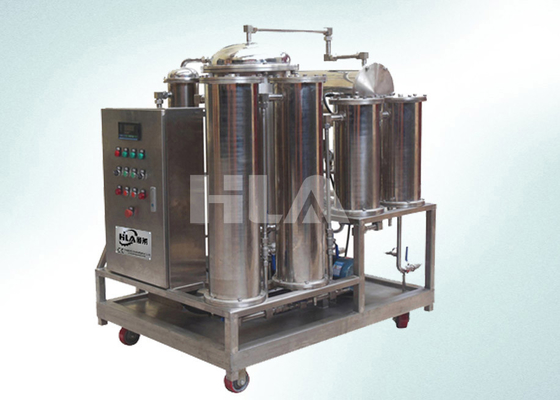

DFR Explosionproof Vacuum Oil Purifier Non Corrosive Phosphoester

DFR Explosionproof Vacuum Oil Purifier Non Corrosive Phosphoester

  • DFR Explosionproof Vacuum Oil Purifier Non Corrosive Phosphoester
  • DFR Explosionproof Vacuum Oil Purifier Non Corrosive Phosphoester
DFR Explosionproof Vacuum Oil Purifier Non Corrosive Phosphoester
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: ISO9001,CE,ISO14001,BV
Model Number: DFR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 10~100L/minute Filtering Precision: ≤1 Micron
Water Content: ≤5ppm Gas Content: ≤0.1%
Temperature Range: 40-60℃ Working Pressure: ≤0.3 Mpa
Demulsifying Value: ≤15/min(GB/F7035)+ Acid Value: ≤0.05mKOH/g
Resistance Value: ≥6 X 109 Ω Type: Stationary & Movable & Transportable
Power Supply: By Customized Color: Optional
High Light:

vacuum oil filter machine

,

oil vacuum system

DFR Explosionproof Vacuum Oil Purifier Non Corrosive Phosphoester



Application:

Series DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid,pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil,combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series DFR is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.



Features:

1. Use of special metal materials which is compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent

2. Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.

3. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter

4. Oil-input and oil-output keep balance by photoelectric switch which is sensitive and accurate to
monitor oil level and stop inputting oil when level marked high and keep inputting oil when low.

5. Advanced medium cooling system

6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.

7. We use filters which designed only for fire-resistant oil to remove particles. Cleanness up to NAS
grade 6.

8. There is system with absorbent to solve acid problem.

9. After treatment, the important index-resistivity up to ≥ 6 x 109.

10. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

11. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

12. Good appearance, compact structure and easy operation.



Technical Specification:

Model Unit DFR010 DFR020 DFR030 DFR050 DFR100
Capacity L/H 600 1200 1800 3000 6000
Working vacuum MPa -0.06~-0.095
Working pressure MPa ≤0.3
Demulsifying value min ≤15/min(GB/F7035)+
Water content ppm ≤5
Gas content % ≤0.1%
Acid value mKOH/g ≤0.05
Resistance value Ω ≥6 x 109 Ω
Filtering accuracy micron ≤1
Cleanness   ≥ NAS 6 grade
Power supply   380V 50HZ(As per user's option)
Working noise dB(A) ≤65~80
Temperature range ºC 40~60
Heating power Kw 9 10 16 20 30
Total power Kw 12 14 20 25 35
Weight Kg 350 400 450 500 600
Dimension L mm 1200 1200 1200 1600 1700
W mm 950 1000 1050 1200 1300
H mm 1600 1650 1700 1800 1900



Our Main Series Products as following:
DVP-Double vacuum Transformer oil purifier
VPM-Movable insulating oil purification cart
DYK-Electric transformer air drying equipments
TVP-Online Turbine oil treatment
DSP-Fuel oil filtration unit
LVP-Lubricating oil purifier/hydraulic oil purification
AP-oil regeneration system, waste oil recycling
PR-Press paper filter machine
DK-Portable oil piurifier,oil filtering,oil filter
ZJY dielectric strength tester for transformer oil
EE36-Oil moisture sensor
Oil purifier parts and various oil testing equipments

Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience

Our After-sales:
Engineer is available for local installation.
Long time warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
