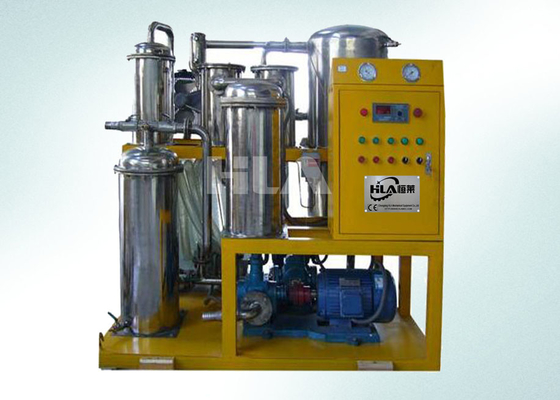

SS304 Vacuum Oil Filter Machine Appropriative Oil Purifier / Oil Water Separator

SS304 Vacuum Oil Filter Machine Appropriative Oil Purifier / Oil Water Separator

    • SS304 Vacuum Oil Filter Machine Appropriative Oil Purifier / Oil Water Separator
    • SS304 Vacuum Oil Filter Machine Appropriative Oil Purifier / Oil Water Separator
  • SS304 Vacuum Oil Filter Machine Appropriative Oil Purifier / Oil Water Separator

    Product Details:

    Place of Origin: Chongqing,China
    Brand Name: HLA
    Certification: CE,ISO9001,ISO14001,BV
    Model Number: DFR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden case suitable for sea transportation and air transportation
    Delivery Time: 10 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 500 sets/year
    Contact Now
    Detailed Product Description
    Flow Rate: 6000L/hour Filtering Precision: ≤1 Micron
    Water Content: ≤5ppm Gas Content: ≤0.1%
    Temperature Range: 40-60℃ Working Pressure: ≤0.3 Mpa
    Demulsifying Value: ≤15/min(GB/F7035)+ Acid Value: ≤0.05mKOH/g
    Resistance Value: ≥6 X 109 Ω Oil Test Equipments: Optional
    Power Supply: By Customized Paiting: Over Two-coats

    SS304 Vacuum Oil Filter Machine Appropriative Oil Purifier / Oil Water Separator





    Application:



    Series DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil, this machine can treat and regenerate the degenerative fire-resistant oil, removing acid,pigment, gas, water and particles. This machine body uses the special metal materials which are compatible with fire-resistant oil,combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil achieve new fire-resistant oil properties. Series DFR is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.



    Features:



    □ New type fully stainless steel material and special type filter material, preciser step by step, which removes lots of impurities from oil. To achieve precision filtration

    □ This machine is made of anti-acid and anti-dissolution 304 stainless steel. The filters and sealing use material which is not dissolved with fire-resistant oil. It is beautiful, light, easy to operate with low noise and long service life.

    □ Equipped with automatic infrared liquid level control system, automatic pressure protection system to ensure safe and reliable high-performance operation of equipment.

    □ Filter oil online with unattended operation. Lights indicate operation status of machine.

    □ We use filters which designed only for fire-resistant oil to remove particles. Cleanness up to NAS

    grade 4.

    □ After treatment, the important index-resistivity up to ≥ 6 x 109.

    □ Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

    □ Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoidingblank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

    □ Good appearance, compact structure and easy operation.

    □ Oil-input and oil-output keep balance by photoelectric switch which is sensitive and accurate to

    monitor oil level and stop inputting oil when level marked high and keep inputting oil when low.

    □ High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.



    Technical Specification:



    Model Unit DFR100
    Capacity L/H 6000
    Working vacuum MPa -0.06~-0.095
    Working pressure MPa ≤0.3
    Demulsifying value min ≤15/min(GB/F7035)+
    Water content ppm ≤5
    Gas content % ≤0.1%
    Acid value mKOH/g ≤0.05
    Resistance value Ω ≥6 x 109 Ω
    Filtering accuracy micron ≤1
    Cleanness   ≥ NAS 6 grade
    Power supply   380V 50HZ(As per user's option)
    Working noise dB(A) ≤65~80
    Temperature range ºC 40~60
    Heating power Kw 30
    Total power Kw 35
    Weight Kg 600
    Dimension L mm 1700
    W mm 1300
    H mm 1900
