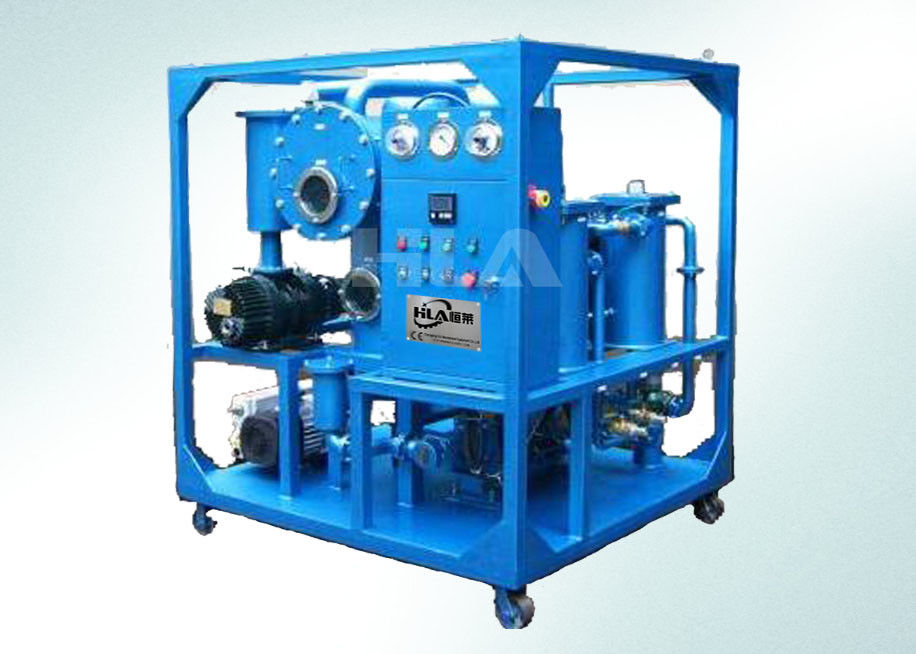

High Speed Vacuum Transformer Oil Purifier Machine With Dual Electronic Monitoring System

High Speed Vacuum Transformer Oil Purifier Machine With Dual Electronic Monitoring System

High Speed Vacuum Transformer Oil Purifier Machine With Dual Electronic Monitoring System
High Speed Vacuum Transformer Oil Purifier Machine With Dual Electronic Monitoring System
High Speed Vacuum Transformer Oil Purifier Machine With Dual Electronic Monitoring System
Product Details:
Place of Origin: Chongqing,China
Brand Name: HLA
Certification: CE,ISO9001,ISO14001
Model Number: DVP80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation and air transportation
Delivery Time: 10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Flow Rate: 32tons/day Filtering Precision: ≤1 Micron
Water Content: ≤3ppm Gas Content: ≤0.1%
Temperature Range: 20-80℃ Heated Surface: ≤1.0W/cm2
Working Pressure: ≤0.4 Mpa Operation Mode: Automatilc & Manual
Color: By Customized Power Supply: 380v,415v,220v,400v Or By Customized
High Light:

High Speed Vacuum Transformer Oil Purifier

,

Dual Electronic Monitoring Oil Purifier

,

32t/d Transformer Oil Purifier Machine

High Speed Vacuum Transformer Oil Purifier Machine With Dual Electronic Monitoring System



Application:

DVP series double stages vacuum transformer oil purifier is special designed for processing insulating oil of high voltage electric equipments(especially for more than 500KV UHV insulating oil) in workshops or the field, storage tanks or drums, it adopts double stages vacuum source, double stages vacuum dehydration and degasification vessels, three stages precise filtration system, which can separate moisture, gas, particles and other harmful ingredients from oil much quickly and effectively to ensure the dry-level and dielectric strength improving greatly.



Meanwhile, DVP machine can be used for online oil treatment for transformers and vacuum drying and oil-pumping for electrical equipment. It is also applied to the above 110KV EHV transmission and distribution equipment, capacitor oil, cable oil, mutual inductor oil etc.



About this machine:

This is our vacuum dehydrator type of our DVP80 model transformer oil purifier machine with PLC control system,it can treat 80L/minute(4800L/hour) transformer oil,insulating oil.This machine used Europe famous brand Germany Leybold vacuum pump and China famous brand root pump,we also could supply the Europe famous brand root pump as customer required. This DVP80 automatic type transformer oil purifier machine mostly suitable for power substation,power plant, power engineering,the power supply house ,transformer oil purify service agent,electric power,railway,petrochemical etc.



Features:

■ Horizontal double vacuum separation technology, doubling the evaporation area and degassing time

■ Double stages vacuum source and dehydration, degasification system, vacuum pump with roots pump, high speed vacuum evacuation, ultimate vacuum ≤ 5Pa

■ Advanced cooling system of vacuum pump, it reduces the frequency of oil’s replacement and extends the life of vacuum pump.

■ Interlocked protective system connects oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

■ Online oil treatment, vacuum drying and vacuum oil-filling for electric equipment.

■ Multi-stage precise filtration system with gradually increasing precision, which can effectively remove mechanical impurities from oil.

■ Automatic double-infrared liquid level controller, pressure protector, which ensure long-term safely and reliable operation.

■ Fully automatic temperature controlling system and multi-stages electric oil heater adopts low-load design to ensure uniform heating oil, the load is less than 1.0W/cm2, oil level and temperature protection of heater, which avoid cracking and aging of oil.

■ Automatic defoaming system with dual electronic monitoring system, which avoid the foam ejecting and gushing to vacuum pump.



Technical Parameters:

Model DVP80
Capacity(L/min) 80
Vacuum level -0.06~-0.095 Mpa
Working pressure ≤ 0.4 Mpa
Ultimate vacuum ≤ 5 Pa
Temperature range 20-80℃
Filtering precision ≤1 micron
Continuous work ≥200 hr
No failure running ≥5000 hr
Power supply 380V, 50HZ, 3PH ( or Customized )
Working noise 65 dB
Heating power (kw) 48
Total power (kw) 54
Inlet/outlet(mm) 44
Weight (kg) 500

Dimension

(mm)

L 1500
W 1100
H 1600



Index Of Purified Oil:

Breakdown voltage ≥ 75KV
Water content ≤ 3ppm
Gas content ≤0.1%
Filtering particles ≥99.5%
Particles size ≤ 1 micron
Cleanness ≤ Grade 6 (NAS)
Processing by regeneration device as following (Optional device)
Acid value ≤ 0.03 mgKOH/g
Water-solubility ≥ 5.4 PH
Flash point (close cup) ≥ 135°C
Dielectric- factor loss tgδ (90℃)% ≤ 0.005



Extra optional parts:

1. The customers' request can be met by adopting PLC intelligent control, touch screen and dynamical display.

2. On line water tester is available.

3. Available in mobile option, immovable option and trailer.

4. Oil purifier can be made in hermetical, canopy-covering, open and frame style

5. Can choose water-ring vacuum pump.
